Product information "DALI-2 Touchpanel 24035410"
Multi Control Module DALI-2 Touchpanel 04 24035290

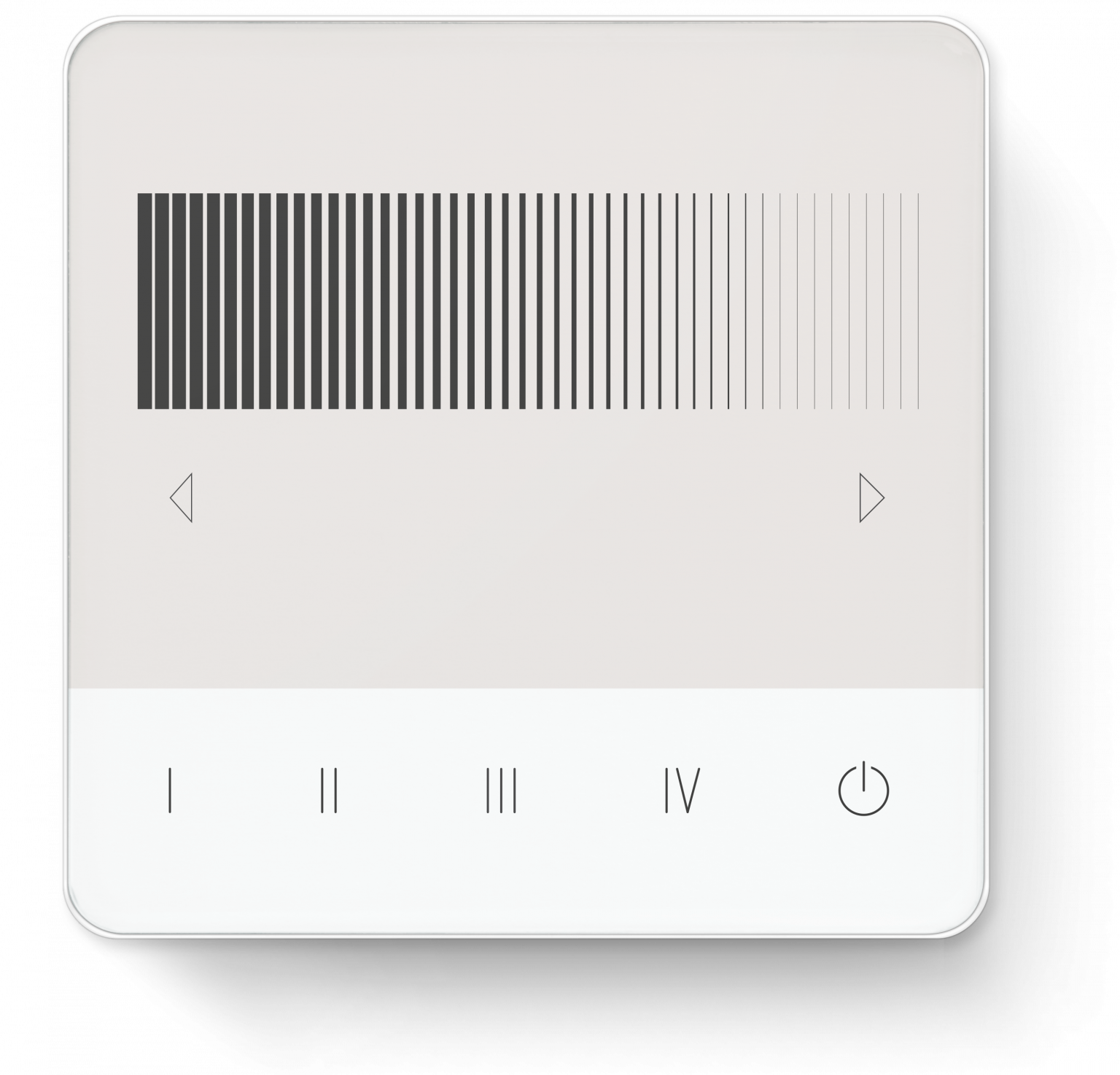

The DALI-2 Touchpanel 04 - Multi Control Module is a state-of-the-art, multifunctional control device that has been specially developed for DALI and DALI-2 systems. It offers a wide range of functions and customisation options that make it an indispensable element in modern lighting control systems. Up to 16 freely configurable buttons are available and the Touchpanel 04 24035290 also has 4 LEDs for visualising selected groups or scenes. The integrated palm recognition or palm control enables fast and intuitive light control by placing the entire palm of the hand on the touch panel. The touch panel is also available with integrated DALI Power Supply (-PS).
An overview of the different user interfaces available can be found here. The touch panel offers both standard layouts and customised designs that can be implemented on request.
Features DALI-2 Touchpanel 04 - 24035290
- Multifunctional operating device for DALI and DALI-2 systems
- Multi-master capable: Several modules can be installed in one DALI circuit or one DALI group
- Capacitive touch operating surface with palm recognition for fast operation
- Up to 16 freely configurable buttons
- Additional 4 LEDs to indicate selected scenes or groups
- Standard layouts and factory settings for easy installation without configuration
- Flexible layout design: individual customisation and layout replacement on site, additional printed layout glasses available as accessories
- Easy configuration via LUNATONE DALI USB interface and DALI Cockpit software tool.
- Glass control surface, plastic frame material (white RAL 9016); aluminium frame or customised frame colours on request
- Integrated DALI-2 application controller for direct control of DALI devices
- Support of DALI DT8 TC and RGB(W) control as well as macros
- Instance mode: Simple integration thanks to 16 DALI-2 pushbutton instances and 5 DALI-2 analogue instances (slider)

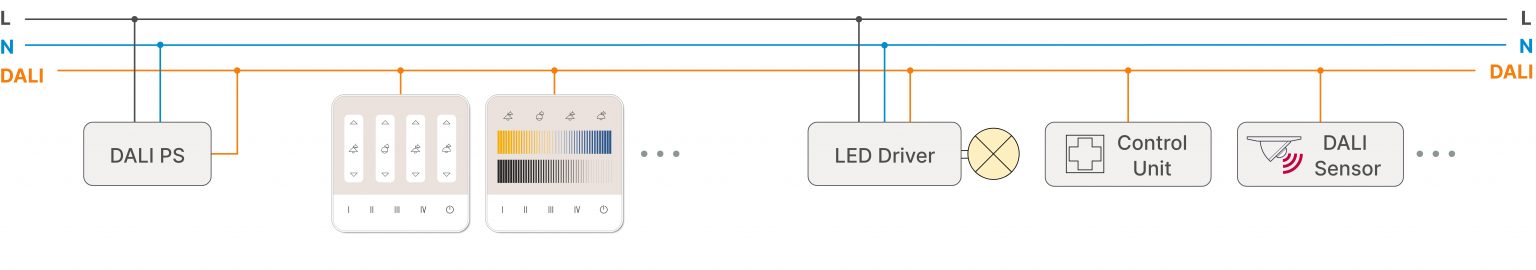

- Easy installation: Mounting on a flush-mounted box
- Supply via the DALI circuit, no additional power supply required
- Version with integrated DALI power supply available ("-PS")
- Version without LED light available: DALI-2 Touchpanel 03
- DALI-2 control device according to IEC62386-103
Difference touch panel 03:
- The touch panel 03 is available here without the 4 LED lights for visualisation.
Overview of the available versions DALI-2 Tochpanel 04
| 24035290-G000 | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes, up to 16 free configurable buttons, various functions, DALI-2 Instances |

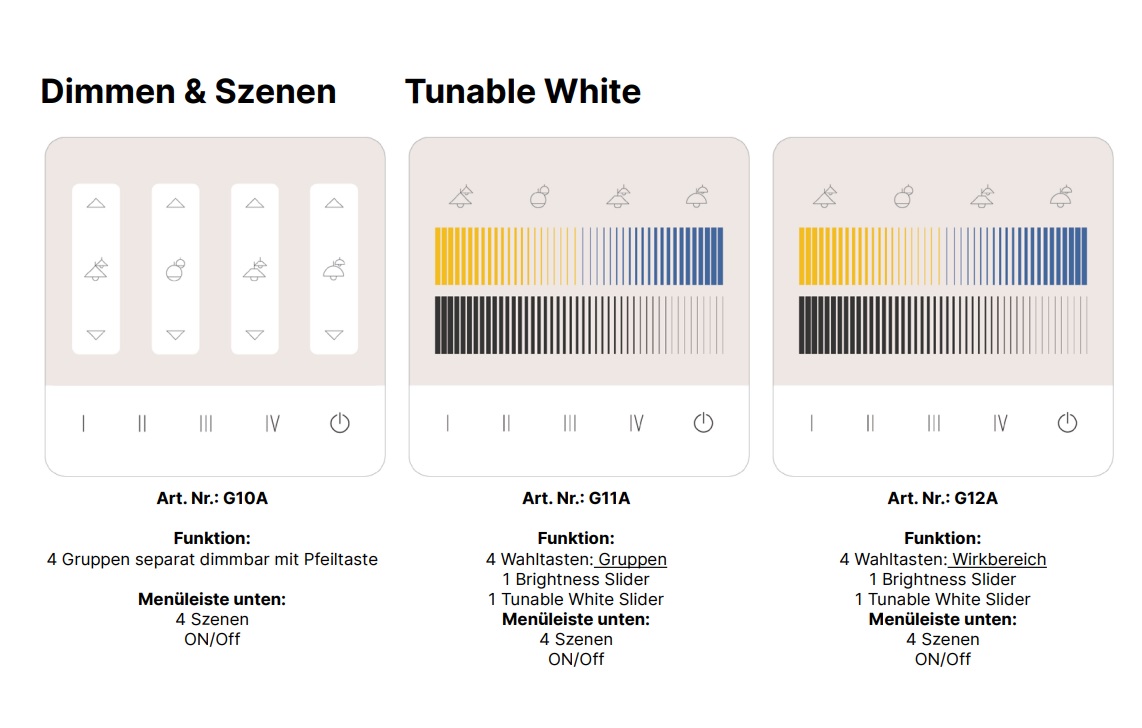

| 24035290-G10A | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes, up to 16 free configurable buttons, various functions, DALI-2 Instances, Function: 4 groups on / off and dimmable with respective arrow keys, Menu bar: 4 scenes, on / off |
| 24035290-G11A | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes, up to 16 free configurable buttons, various functions, DALI-2 Instances, Function: 4 groups on / off, 1 brightness slider, 1 tunable white slider, Menu bar: 4 scenes, on / off |
| 24035290-G12A | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes, up to 16 free configurable buttons, various functions, DALI-2 Instances, Function: 4 Effective range selection buttons, 1 brightness slider, 1 tunable white slider, Menu bar: 4 scenes, on / off |

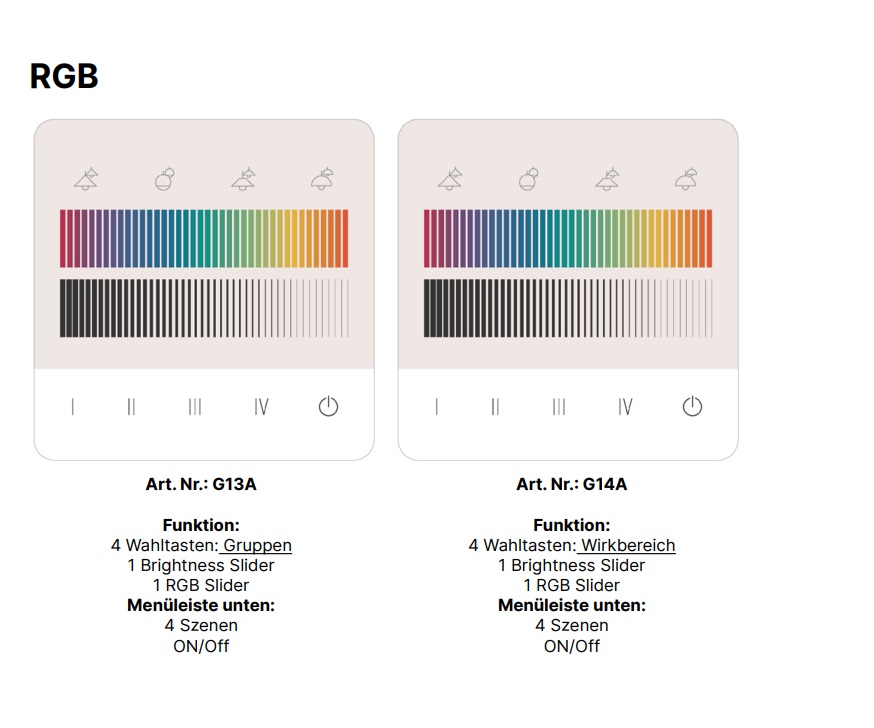

| 24035290-G13A | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes, up to 16 free configurable buttons, various functions, DALI-2 Instances, Function: 4 groups on / off, 1 brightness slider, 1 colour slider, Menu bar: 4 scenes, on / off |
| 24035290-G14A | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes, up to 16 free configurable buttons, various functions, DALI-2 Instances, Function: 4 Effective range selection buttons, 1 brightness slider, 1 colour slider, Menu bar: 4 scenes, on / off |
| 24035290-PS-G000 | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes and with DALI PS (70mA), up to 16 free configurable buttons, various functions, DALI-2 Instances |
| 24035290-PS-G10A | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes and with DALI PS (70mA), up to 16 free configurable buttons, various functions, DALI-2 Instances, Function: 4 groups on / off and dimmable with respective arrow keys, Menu bar: 4 scenes, on / off |
| 24035290-PS-G11A | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes and with DALI PS (70mA), up to 16 free configurable buttons, various functions, DALI-2 Instances, Function: 4 groups on / off, 1 brightness slider, 1 tunable white slider, Menu bar: 4 scenes, on / off |
| 24035290-PS-G12A | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes and with DALI PS (70mA), up to 16 free configurable buttons, various functions, DALI-2 Instances, Function: 4 Effective range selection buttons, 1 brightness slider, 1 tunable white slider, Menu bar: 4 scenes, on / off |
| 24035290-PS-G13A | capacitive Touchpanel with 4 LEDs to indicate selected groups or scenes and with DALI PS (70mA), up to 16 free configurable buttons, various functions, DALI-2 Instances, Function: 4 groups on / off, 1 brightness slider, 1 colour slider, Menu bar: 4 scenes, on / off |
Specifications 24035290 and 24035290-PS
| DALI-2 Touchpanel | DALI-2 Touchpanel-PS Version with integrated bus supply 70mA | |
| Type of output | DALI, DALI-2, multimaster, supply | DALI |
| Voltage range | 9.5V.... 22,5Vdc according to IEC62386 | 12Vdc…. 20,5 Vdc |
| typ. Current consumption DALI (at 16.5V) | 2 mA | |
| Operating temperature | -20 ° C? + 45 ° C | |

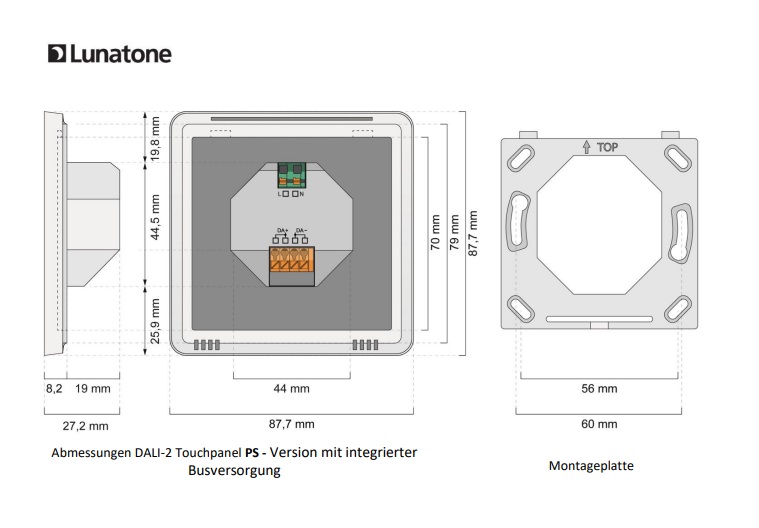

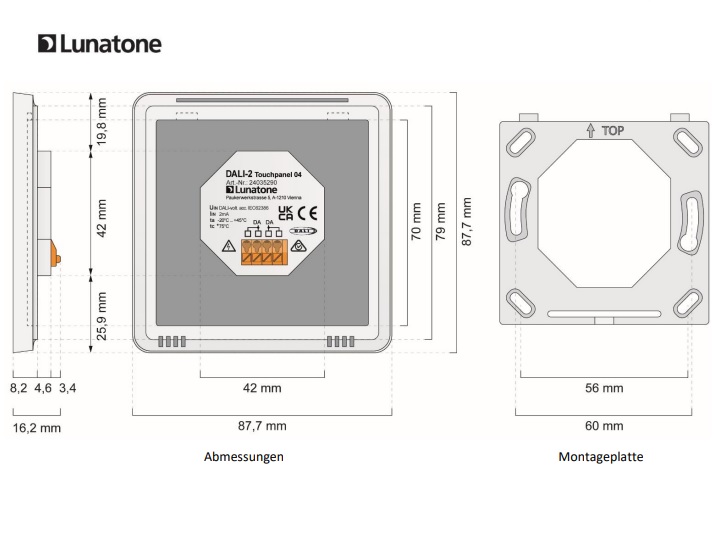

| Dimensions | 87.7mm x 87.7mm x 16.5mm | 88mm x 88mm x 39mm |

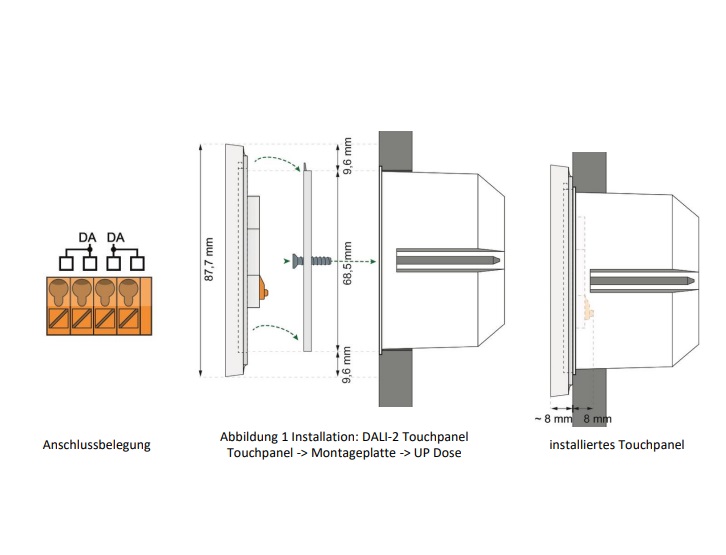

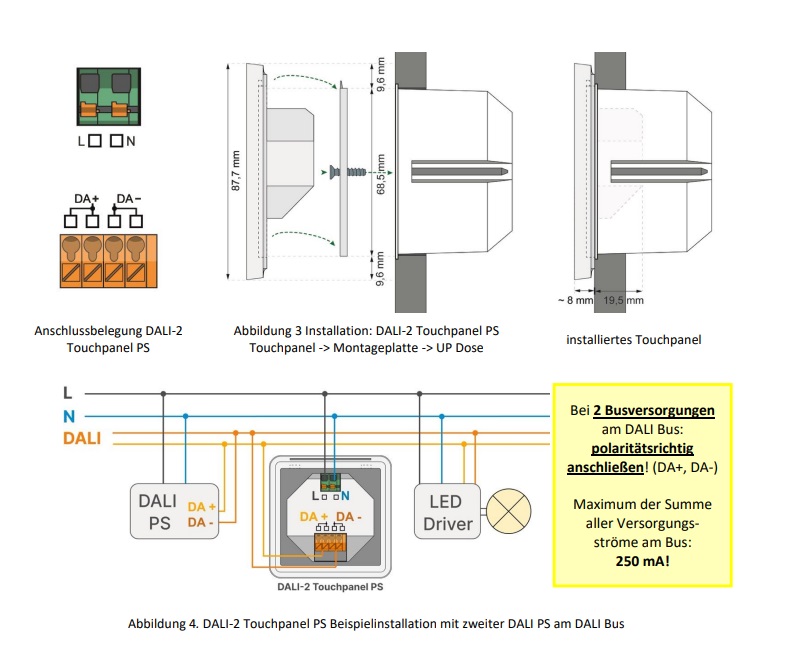

| Assembly | Installation installation box Installation in protection class II devices | |
| Expected lifetime | 100,000h | |
| Manufacturer-specific operating modes | Application Controller, DALI-2 Instancemode | |
Further data and information on the DALI-2 Touchpanels 04 can be found in the download tab
The "Extra Glass" variant requires an order using the Lunatone configurator
Various ready-made designs can also be loaded in the configurator or created individually online.
The configuration of an individual frame color is also possible using the configurator.
Please note: Additional costs may be due here, as well as the acceptance of a minimum order quantity.
If you are interested in an individual design, please feel free to contact us.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Dimmable/Control: | DALI, DALI2, DALI DT8 |
