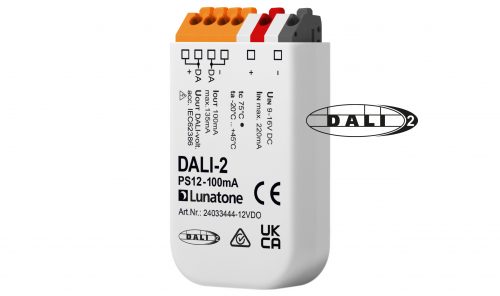

DALI-2 PS12 100mA bus supply Power Supply Unit

DALI-2 PS12 power supply 100mA - 24033444-12VDO

The DALI-2 PS12 100mA is the ideal solution for the power supply of your DALI bus system. With its standardised voltage, current limitation and precise timing, it ensures reliable bus communication. This power supply unit provides a guaranteed output current of up to 100mA, which is sufficient to supply a DALI installation with up to 50 standard DALI devices (DALI sensors, MC, touch panels, etc.).

Technical features DALI-2 PS12

• Input voltage range: 9V DC to 16V DC
• Power consumption: Maximum 2W
• Output DALI DA+ and DA-: Output voltage range from 12V DC to 20.5V DC
• Output current: 100mA
• Housing colour: Grey

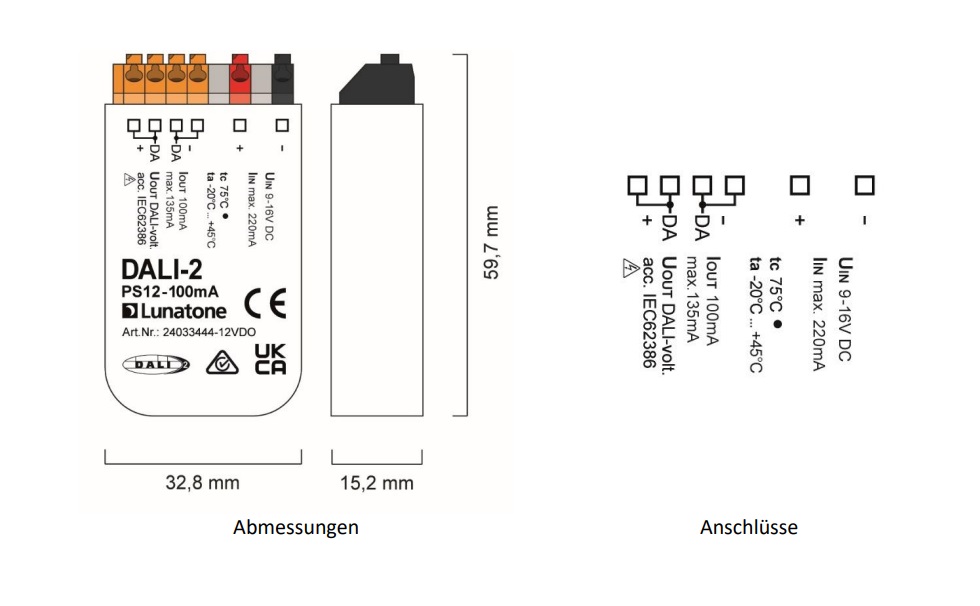

• Dimensions: Length: 59mm, Width: 33mm, Height: 15mm
• Protection class: IP20
• Mounting: Suitable for installation in an electrical installation box or for integration in protection class II devices
• Connecting wires: Cross-section max. 1.5mm²
• Operating temperature: -20°C to +55°C
• The DALI cables can be installed using standard low-voltage installation material. No special cables are required.

The advantages of the DALI-2 PS12 include a reliable supply thanks to standardised voltage and current limitation, which ensure stable and reliable communication in the DALI bus system. The supply voltage of 9V DC to 16V DC enables a wide range of applications. With its compact dimensions, the DALI-2 PS12 100mA fits perfectly into electrical installation boxes and can be easily integrated into existing Systems.

The DALI-2 PS12 100mA offers a reliable and efficient solution for powering your DALI bus system to ensure smooth and stable communication between your devices.

For more information, please refer to the data sheet in the download tab.
