DALI-2 Audio Interface - Radio and audio playback

DALI-2 Audio Interface - The smart solution for playing Internet radio & audio files

Easy integration of audio content in your smart home or office; simply play Internet radio and audio files via the DALI bus!

Thanks to the user-friendly interfaces and intuitive operation, the DALI-2 audio interface is suitable for beginners and professionals alike. Whether you want to connect your audio devices, control different sound sources or simply enjoy your favorite music in the best quality - this interface makes it possible, and at the highest Level.

The most important features at a glance:

• Wide range of audio options: Play up to 16 Internet radio stations via scenes or stream your favorite audio files directly over the local network.
  The device supports both MP3 and AAC streaming, providing a wide range of audio formats.
• Easy speaker connection: Straightforward connection of speakers or intercom systems via the standardized speaker connection
• DALI control: Seamless integration into your DALI system! Control radio stations and volume directly via DALI, similar to operating a DALI dimmer, the volume is controlled instead of the brightness. Up to 16 radio stations can be preset for quick access via scenes.
• WLAN interface: WLAN integration allows the interface to be easily integrated into your local network to provide access to a wide range of Internet radio stations and file storage locations. To use the Internet functions of the DALI-2 device, the network connection must be configured using the DALI Cockpit software tool.
• Doorbell: No network connection is required to play the existing “Doorbell” audio file.
• Easy configuration and management: With the Lunatone software DALI Cockpit, you can easily configure, address or adjust the settings of the device.

The DALI-2 device is also designed for recessed ceiling mounting or installation in lighting fixtures, allowing it to blend discreetly into any environment. Once connected, the device is immediately ready for operation. Integration into the network and further configurations are then carried out very easily via the DALI Cockpit.

Data of the DALI-2 Audio Interface

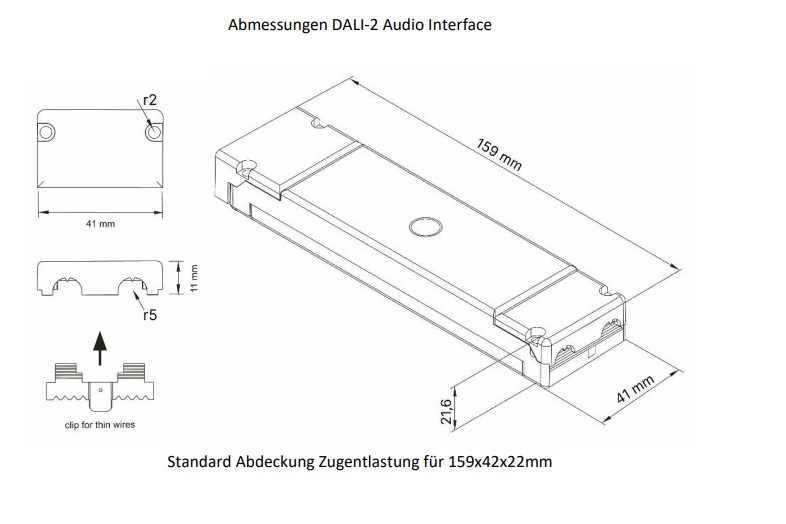

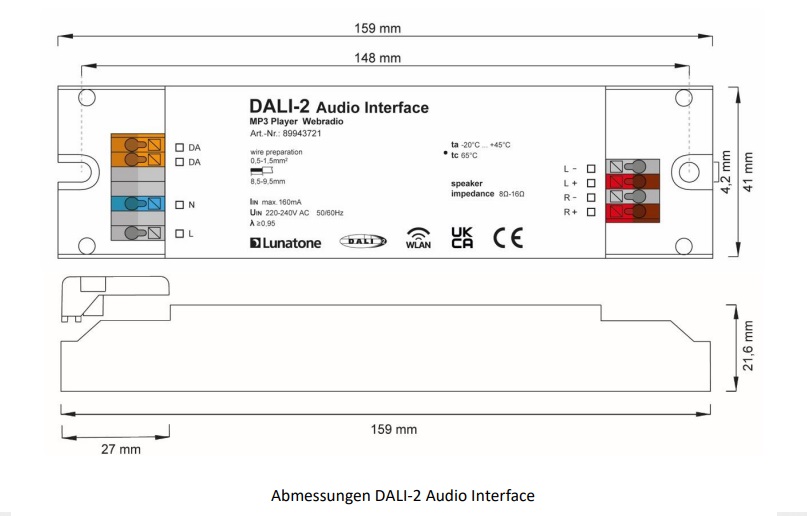

• Dimensions (L x W x H): 159mm x 42mm x 22mm
• type of input: supply, mains voltage
• Input voltage range: 110Vac ... 240Vac
• Input current max: 31mA (@110Vac), 21mA (@240Vac)
• Mains frequency: 50Hz / 60Hz
• Power consumption max.: 4W
• Switch-on start-up time: < 1s
• Speaker cable connection: Left L-, L+; Right R-, R+
• Colour: white

For further technical data and information on installation and configuration, please refer to the data sheet under Downloads.
