Connection terminals for LED strip to cable
€2.27*
net-price: €1.91delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "Connection terminals for LED strip to cable"
Solderless connection terminals for wiring LED strips with cable

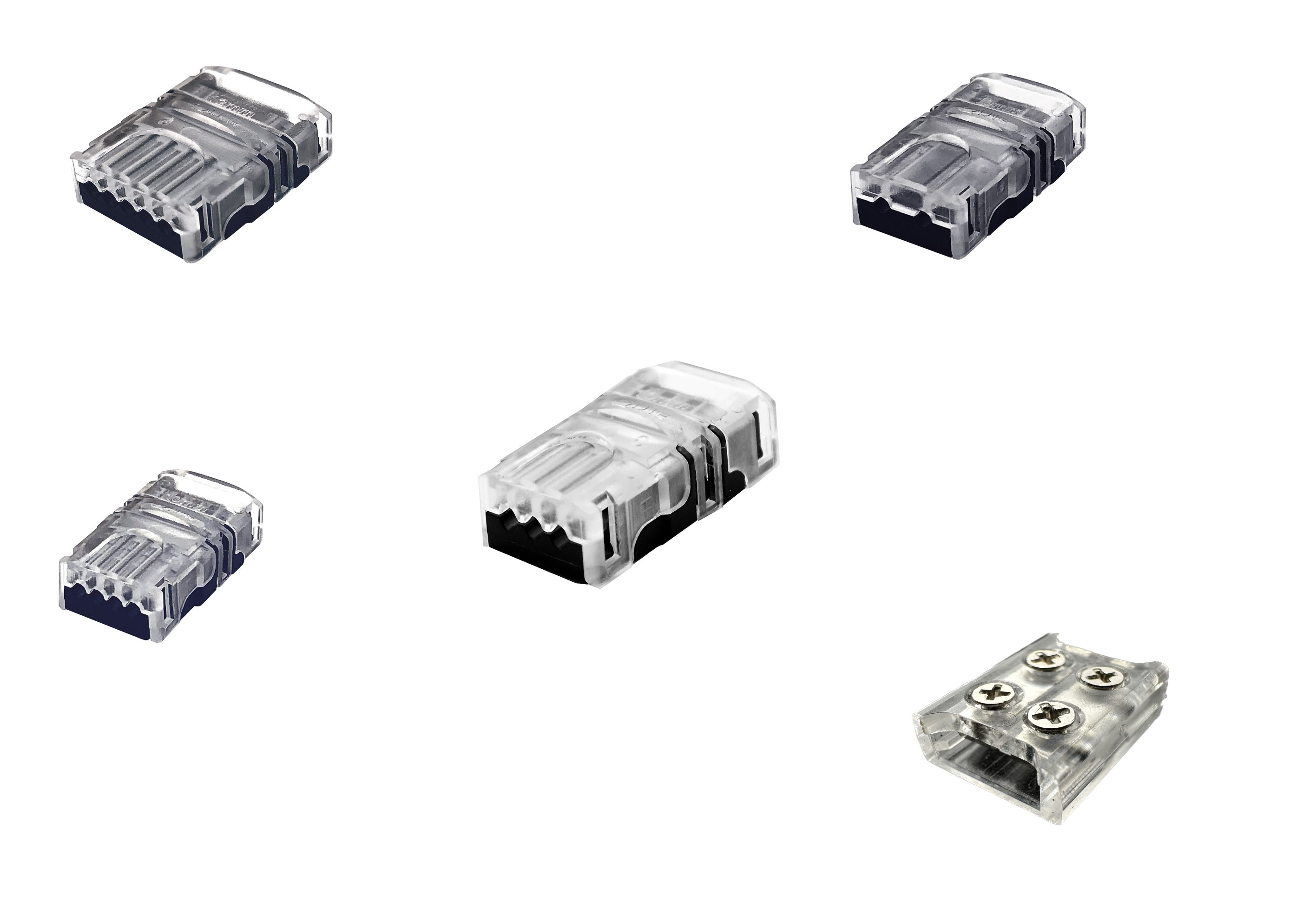

Various connecting terminals for easy solderless wiring of LED strips and cables.
Connection terminals with ‘pierce-to-contact’ Technology
The LED strip connection terminals connect strips and cables more easily than ever before with the innovative ‘Pierce-to-Contact’ technology. To do this, place the LED strip over the pin of the connector and then press the cap down. The same applies to the cables: Simply place the wire in the groove and press the cap down. No further work is required.
Overview and technical data of connecting terminals with Pierce-to-Contact
| Item Number: | 210210 | 210211 | 210212 | 210213 | 210214 | 210215 | 210222 |
LED Stripe width: | 8 mm | 10 mm |
12 mm
| 10 mm | 10 mm | 12 mm | 8 mm |
| 2-pin | 3-pin CCT | 4-pin RGB | 5-pin RGBW | 2-in | |||
| Protection class: | IP20 | IP54 | |||||
| Type: | Onlumi transparent / black | ||||||
| Conductor cross-section: | 0.34~0.75 mm² | 0,34mm² | 0.34~0.75 mm² | ||||
| Maximum current: | 3,5A | ||||||
| Dimensions: | 24 x 13 x 8 | 24,3 x 17 x 8 | 24,3 x 14,6 x 7,7 | 24,3 x 14,6x 7,7 | 24,3 x 17 x 8 | 24 x 13 x 8 | |
Connection terminals for screwing
Quickly and easily connect LED strips with cables by inserting the strip into the terminal and tightening both screws with a Phillips screwdriver. Clamp the two power cables on the opposite side.
Overview and technical data connecting terminals with screws
| Item Number | 210228 | 210229 |
| LED Stripe width | 8 mm | 10 mm |
| 2-pin | ||
| Protection class | Ip20 | |
| Type | Onlumi transparent / silver | |
| Conductor cross-section | 0.25~0.75 mm² | |
| Maximum current | 5A | |
| Dimensions | 18 x 11,5 x 7 | |
Note: When selecting the profile, please bear in mind that the final overall stripe width will be wider when using connection clamps.
