COB LED Stripe 24V 10W/m 528LEDs/m
€34.06*
net-price: €28.62delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "COB LED Stripe 24V 10W/m 528LEDs/m"
COB LED Stripe 24 Vdc - a continuous bright and uniform light strip
The COB LED Stripe is a type of LED strip light based on chip-on-board (COB) technology. Unlike conventional LED strip lights, COB LED Strips do not have individual points of light visible because the LEDs are packed tightly together to create a continuous, perfectly uniform band of light.
With the COB LED Strips from PUR-LED you get a continuous light band without light-dark transition similar to neon lighting due to a very high number of LEDs per meter (528LEDs/m). Another special feature is the phosphor layer, which is needed for the conversion into white light and is drawn as a continuous band over the whole LED strip.
The COB LED strips can be used like normal LED strips, but offer the advantage of a very homogeneous illumination. The COB strips are highly flexible and can also be bent very well due to the small width of only 8mm. They can be cut and connected just as flexibly as normal LED strips. Likewise, the solder contacts for connecting cables are exposed.
The COB LED Stripe is available in versions with different color temperatures in a range from 2700 K to 4000 K (depending on the selection) as well as different lengths from 1 to 5 meters.
Advantages of+s COB LED Stripe:
- homogeneous illumination - no individual LEDs visible
- absolutely uniform light pattern
- high efficiency
- flexible and easy to bend
- 528 LED chips per meter
- available in different lengths (1 to 5 meters, depending on selection)
Application examples for COB LED strips:
- logos and lettering with luminous effect
- furniture or accent lighting
- Interior lighting
- Homogeneous line lighting, also in very flat aluminum profiles
- Contour lighting, also on curved lines
- Continuous, narrow accent or orientation light
- Absolutely uniform indirect lighting at the shortest distances
The narrow design of only 8mm and the extremely high assembly of 528 highly selected LEDs allow new and diverse areas of application.
Overview of technical data:
| Articelnumber: | STR-7052827 | STR-7052830 | STR-7052840 |
| Electrical Data | |||
| rated voltage: | 24 Vdc | ||
| rated current: | 0,4 A/m | ||
| rated power: | 10 W/m | ||
| Efficiency: | 105 lm/W | 100 lm/W | 105 lm/W |

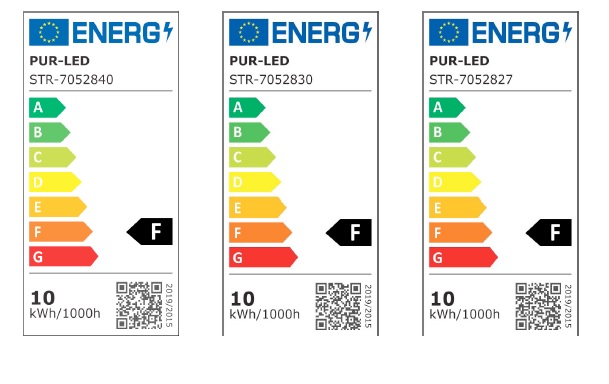

| Energy efficiency class: | F | ||
| Lighttechnical Data | |||
| Luminous flux: | 1.050 lm/m | 1.000 lm/m | 1.050 lm/m |
| Light Color: | warmwhite comfort | warmwhite | neutralwhite |
| color temperature: | 2.700 K | 3.000 K | 4.000 K |
| color rendering index RA: | 85 | ||
| beam angle: | 120° | ||
| dimmable | via PWM (see datasheet) | ||
| Lifetime & ignition time | |||
| rated life: | 30.000h | ||
| ingnition time: | <0,5s | ||
| start-up time: | immediately | ||
| Temperatures | |||
| Operating temperature: | 55°C measured at TC Point | ||
| Storage temperature: | -15 to +40°C | ||
| Dimensions | |||
| Lenght: | 1.000 to 5.000 mm (depending on selection) | ||
| width: | 8 mm | ||
| height: | 2 mm | ||
| pitch: | 50 mm | ||
Please refer to our data sheet under Downloads for further technical details and safety instructions.
| ·Amount LEDs/m: | COB |
|---|
