CASAMBI - radio 300W 230V
€170.75*
net-price: €143.49delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "CASAMBI - radio 300W 230V"
CASAMBI - radio LED dimmer UP - 300 Watt
This compact, high-efficiency LED dimmer has a CASAMBI control function and allows convenient operation with a tablet or smartphone. Light bulps, dimmable LED lamps and control gear for LEDs and halogen lamps can be put into operation with this CASAMBI module. However, it is not suitable for magnetic transformers. For attachment of the dimmer, the fastening device offers optimal conditions (wall, room corner, etc.).
Further features:
- Trailing-/Leading Edge (several profile via app selectable)
- You can setup a gateway, but it is not necessary
- Integrated antenna

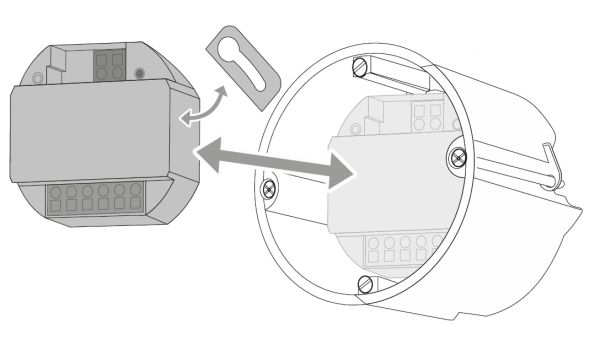

- Installation in flush-mounted box
- Advanced Adaptive Dimming
- Push button input for controlling
- For operation of light bulps, dimmable LED lamps and control gear for LEDs and halogen lamps
Setup and operating instructions:
It is recommended to install the free app from CASAMBI. It is available both in the "App Store" and in the "Play Store". This offers you the following options:
- Lighting control (colour/dim level)
- Configuration of luminaires and luminaires networks
- Creation of scenes and animations (colour gradient)
- Automatic detection of new device
- Intelligent timer and gallery function
- Protection settings of your luminaires network ("just me", "with password",...)
Technical data:
| Article number | 808945 (Successor of 808949) |
| Type | DENBT230-300 |
| Power supply input | 220..240 V |
| Signal input | BT 4.0 (2,4 GHz) lite @ Smart device |
| Radio signal | 2,4..2,483 GHz; 4 dBm |
| Frequency | 50..60 Hz |
| Power at 230 V | 4..300 W |
| Ambient temperature | 0..+50 °C |
| Rated Max. temp. | 70 °C |
| IP protection level | 20 |

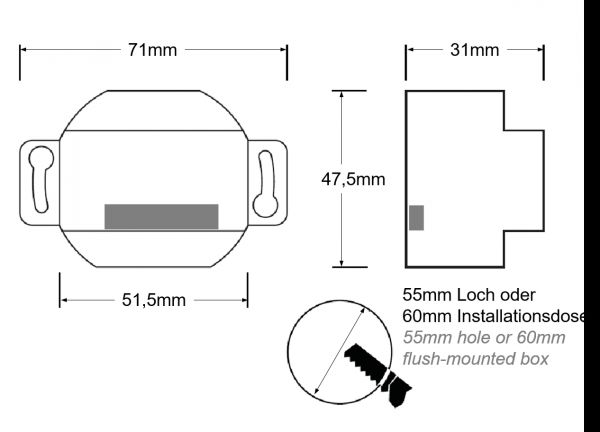

| Dimensions | 51,5 (71) x 47,5 x 31 mm |
Selection of introductory videos for CASAMBI:
CASAMBI Tutorial - General overview of functions
CASAMBI Tutorial | Start / First Steps / Network Setup
For more information, please refer to the data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Dimmable/Control: | BT4.0 (2,4 GHz), Casambi radio, Phase-Cut (Triac), Push-Button |
