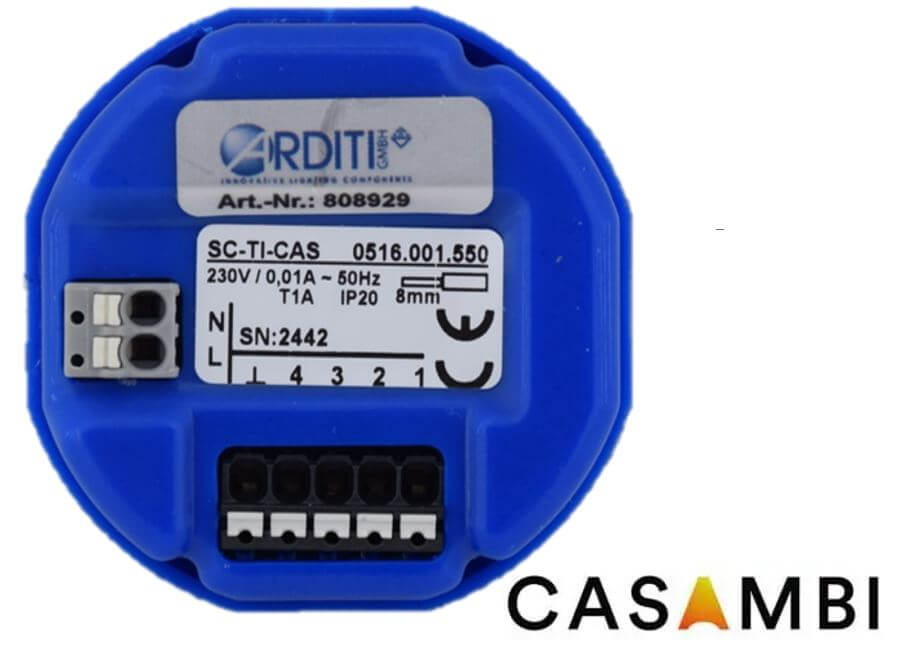

Casambi Push Button Interface UP 4-way 808929

€138.55*

net-price: €116.43

Content: 1

Prices incl. VAT plus shipping costs

delivery time 3-5 Working days*

Product number: 808929

Manufacturer: Arditi GmbH Lighting Components

Manufacturer product number: 808929

Weight: 0.025 kg

Min. order quantity: 1

Our benefits

Purchase and advice from the LED expert
Professional products from over 15 years of experience
LED technology is our passion
Free shipping for orders over €150 (DE)

Product information "Casambi Push Button Interface UP 4-way 808929"

Casambi Push Button Interface with 4 Programmable Buttons, UP

This programmable push button interface can be used to implement various lighting applications that have a Casambi lighting control system. Here, the programming of the 4 available inputs is conveniently done with a smart device (tablet or smartphone) using the Casambi app. Its functional possibilities are explained in more detail below. The Casambi push button interface is able to control multiple devices within a Casambi network.

Product Overview / Features:

4-way Casambi push button interface for controlling Casambi enabled devices
Suitable for mounting in a flush-mounted box (UP)
4 freely programmable inputs for pushbuttons (normal open)
Current consumption up to 10 mA through the Casambi pushbutton interface
Robustness to external temperatures in a range from 0°C to +55°C
Use the free app from CASAMBI (Apple / Android) to conveniently control all settings (downloads below in description)
- Regulate the brightness
- Configuring luminaires and luminaire networks
- Creating scenes and animations
- New devices are automatically detected
- Intelligent timer and gallery functions
- Set sharing options (only me, everyone, only with password, ...)

Note:

The programmable pushbuttons / normal opens of the Casambi pushbutton interface must be appropriately isolated from the power supply voltage.

Technical Data:

Part number	808929
Type	RW2304XBT
Power supply input	220..240 Vac; 50 Hz
Radio signal	2.4..2.483 GHz; 4 dBm
Current consumption	Max. 10 mA
Ambient temperature	0..+55 °C
Quantity of push buttons	4
Cable length of push buttons	Max. 30 cm
Short circuit protection	Yes
Dimensions	Ø 53 x 21 mm

Experience the new application versatility of CASAMBI.

Through Casambi, you can conveniently control your lighting via smartphone or tablet, wirelessly and easily individually. The control runs via Casambi LE (low energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases the range, because each module establishes a direct connection to all others.

Your lights can now not only dim, turn on and off, but the timer function allows you to implement time controlled lighting. In the process, a maximum of 3 lights can be combined into a group, light scenes can be stored, and much more.
The compact modules are mounted quite simply in front of the luminaire, so that no additional cables need to be laid. The setup is extremely simple, all components are automatically recognized in the network and in the app.

CASAMBI QR code and links:

Casambi App in App Store

Casambi App for Android

Small selection of introduction videos for CASAMBI:

CASAMBI Tutorial | General overview of functions

CASAMBI Tutorial | Start / First steps / Set up network
 CASAMBI Tutorial | Create and use scenes
CASAMBI Tutorial | Pairing and setting up Xpress
Many more supportive videos about Casambi can be found on YouTube.
For more information, please refer to the data sheet in the download tab.

Properties "Casambi Push Button Interface UP 4-way 808929"

·Application/IP-Code:	IP20 - IP44 (Indoor)
·Dimmable/Control:	BT4.0 (2,4 GHz), Casambi radio, Push-Button

Datasheet & further Infos about this product

Data sheet Casambi push button interface 4 way 808929
Instruction Casambi push button interface 4 way Connection scheme

Manufacturer "Arditi GmbH Lighting Components"

Arditi GmbH

specialises in lighting electrics and electronics and was founded over 60 years ago. With its own manufactured products, within the Arditi Group and an additional portfolio, it designs, manufactures and sells lighting components in the lighting industry. Especially in the field of smart home lighting as the largest European partner of CASAMBI. The product range consists of the following categories | Electrical engineering | LED components and CASAMBI lighting controls, it is broadly diversified and includes switches, dimmers, sockets, cables, transformers and accessories. In the field of LED technology, the company offers various forms of transformers, drivers/power supplies and LED power supplies.
For over 10 years we have been offering more than 100 products from the manufacturer Arditi worldwide.

Below is our portfolio of products. Tip: Use the filter function to quickly find the item you are looking for, or give us a call.

Arditi GmbH
Leischstraße 17 - 27432 Ebersdorf - Germany

E-Mail: info@arditi.de

Safety instructions

Devices with 230V connection terminals are considered safety-relevant and may only be fitted or installed by qualified electricians or specialist personnel (e.g. IEC 60364, VDE0100, VDE0105).
