Bright 24V LED strip Highpower Stripe 28W/m | 192 LEDs
€60.39*
net-price: €50.75delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)

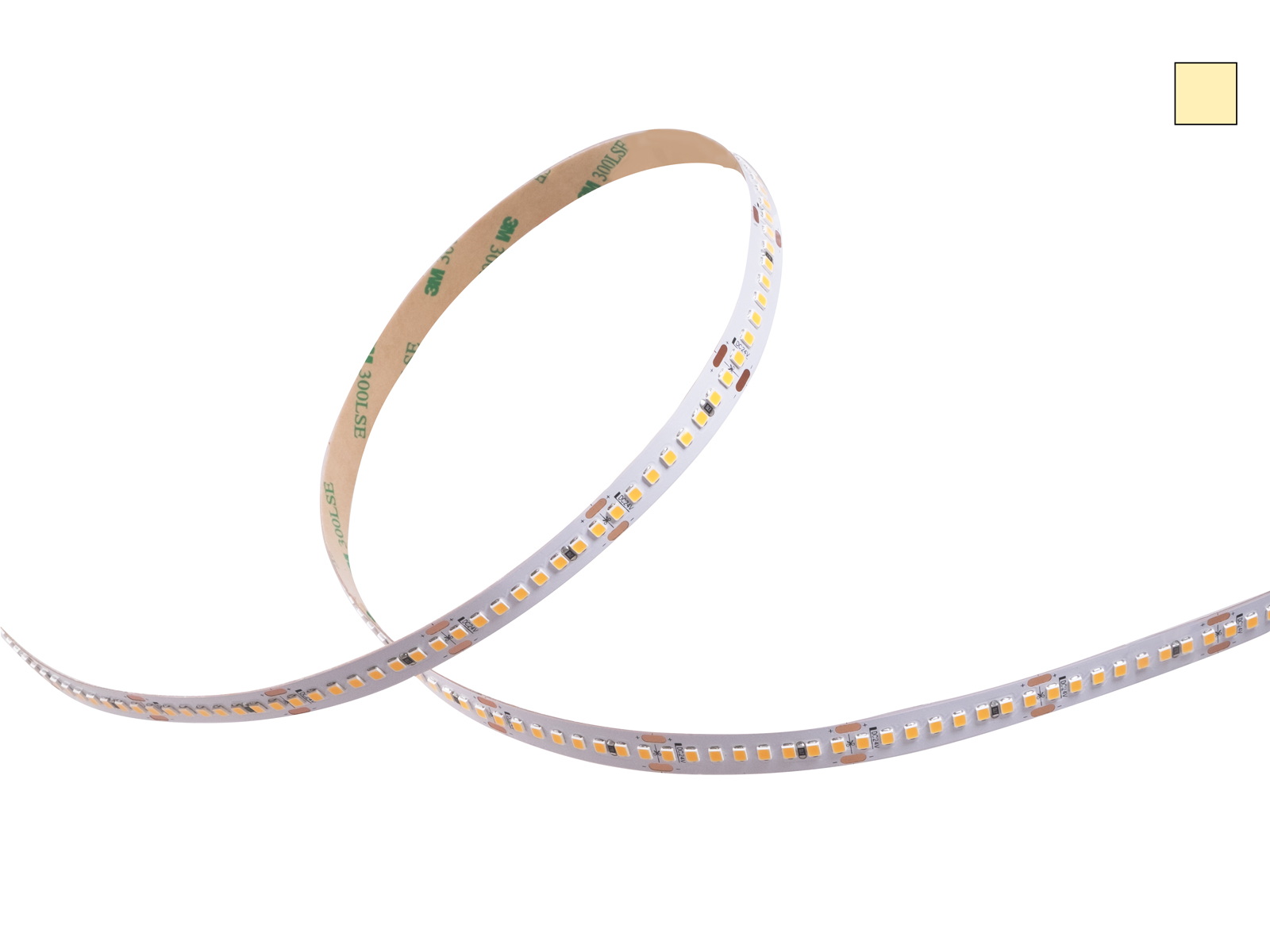

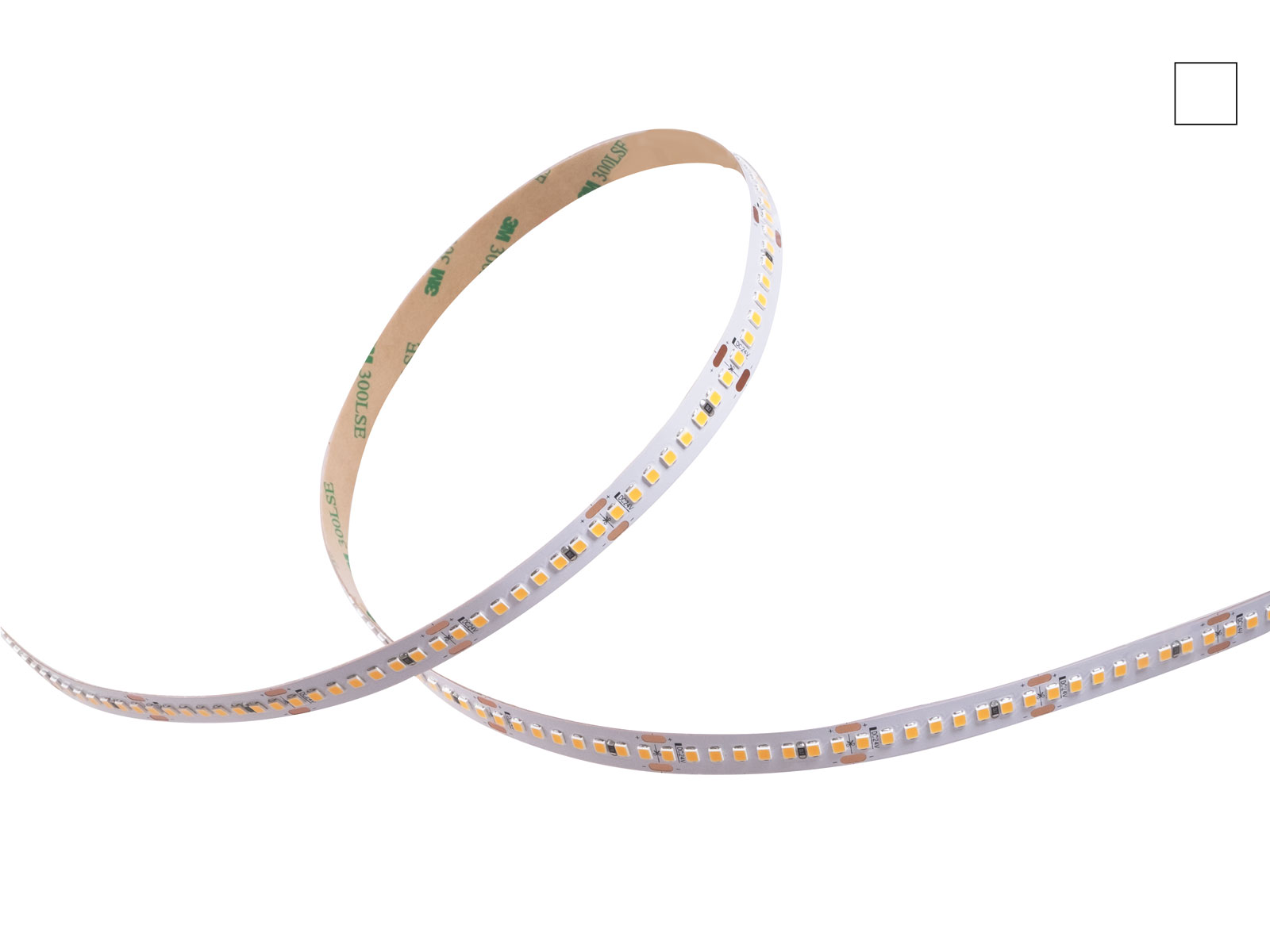

24 V high-power LED strip with 28W/m with high luminous efficacy
This 24 V PUR LED high-power strip with 192 SMD LEDs per metre and approx. 3400 - 3500 lumens per metre (depending on colour temperature) offers outstanding light output and also ensures homogeneous illumination. The bright LED strip is the choice for professional and efficient lighting solutions that not only deliver a very high light output with good efficiency, but are also visually appealing.
This 24 V Highpower Stripe is available in three different colour temperatures (warm white, warm white comfort and neutral white) and in lengths of 1 to 5 metres. The smallest divisible unit is 42 mm with 8 LEDs. A maximum of 5 metres can be operated in one piece. For optimum performance, the strip must be mounted in an aluminium high-power cooling profile. The high-quality white backing material improves light reflection, while the heat-resistant, double-sided 3M Scotch adhesive tape on the back enables simple and secure installation on various surfaces.
Ideal for accent lighting in shops, hotels, museums, living spaces and other areas where high-quality, efficient lighting is required.
This high-quality LED strip creates a high colour rendering with CRI, RA90+ and flexible application possibilities, ideal for professional lighting installations in indoor areas.
Features 24 V LED strip 28W/m
- 24V supply voltage enables a large selection of LED transformers
- beam angle of 120° ensures wide-area illumination
- Population density of 192 LEDs/m ensures adequate light distribution.
- 3400 - 3500 lumens per metre ensure high luminous efficacy
Technical data of the Highpower LED strips
| Electrical data | ||||
| Item number | STR-NW-24-192 | STR-WW-24-192 | STR-WWC-24-192 | |
| Rated voltage: | 24 Vdc | |||
| Rated current: | 1,17 A/m | |||
| Rated power: | 28 W/m | |||
| Efficiency: | 125 lm/W | 125 lm/W | 121,43 lm/W | |
| Energy efficiency class: | E | |||
| Photometric data | ||||
| Luminous flux: | 3.520 lm/m | 3.500 lm/m | 3400 lm/m | |
| Light colour: | neutral white | warm white | warm white comfort | |
| Colour temperature: | 4.000 K | 3.000 K | 2.700 K | |
| Colour rendering index RA: | >90 | |||
| Beam angle: | 120 ° | |||
| dimmable: | yes, via PWM (see data sheet) | |||
| Lifetime & ignition time | ||||
| Rated life: | 50.000 h | |||
| Ignition time: | < 0,5 s | |||
| Start-up time: | immediately | |||
| Temperatures | ||||
| Operating temperature: | 55 °C measured at the TC point | |||
| Storage temperature: | -15 to +40 °C | |||
| Dimensions | ||||
| Length: | 1.000 - 5.000 mm | |||
| Width: | 12 mm | |||
| Height: | 2 mm | |||
| Pitch: | 42 mm | |||
| LED Distance: | ca. 5 mm | |||
| LED Zwischenraum: | ca. 3 mm | |||
For further technical data, information on installation and more, please refer to the data sheet under Downloads.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K |
| ·Lamp shape: | flexible (stripes) |
| ·Power/Meter: | > 20W/m |
| ·rated luminous flux lm/m: | higher 2000 lm/m |
| ·Amount LEDs/m: | 192 LEDs/m |
| ·Constant Voltage: | 24V |
The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.
