Battery-powered surface-mounted magnetic sensor for CASAMBI networks
The battery-operated built-on magnetic sensor for CASAMBI sends a radio signal to a CASAMBI network in the event of contact or loss of contact. The magnetic sensor can be configured and used in a variety of ways on smart devices (with Apple or Android) with the CASAMBI app. So e.g. b. controlling lights, triggering scenes and much more is possible. The magnetic sensor is compatible with "Evolution" networks.

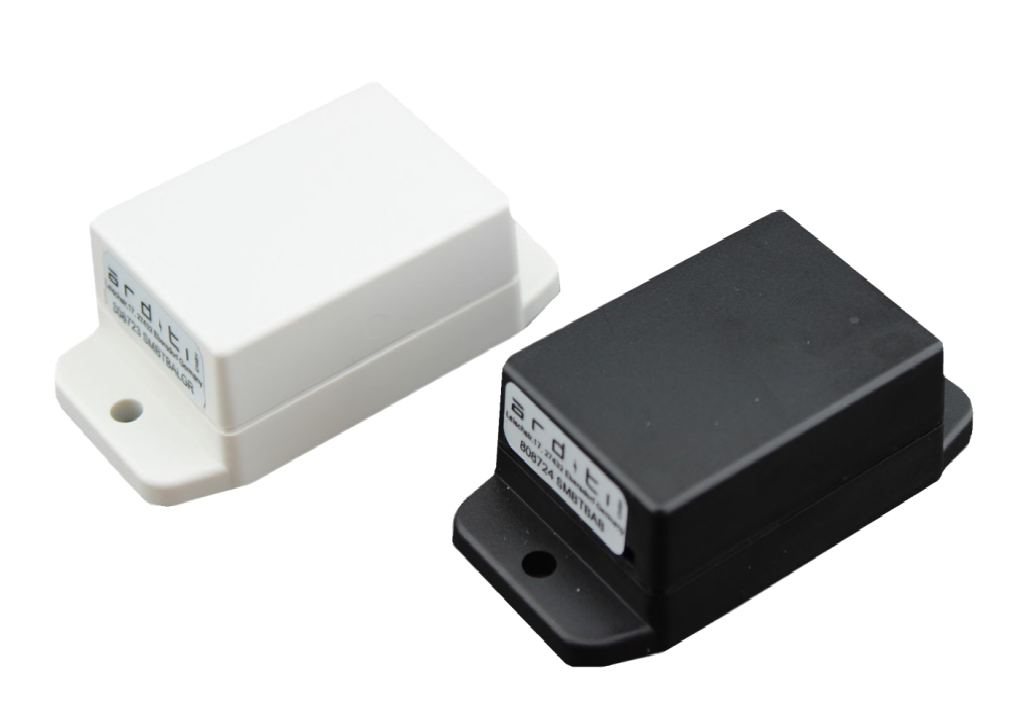

The CASAMBI magnetic sensor is available in the colours

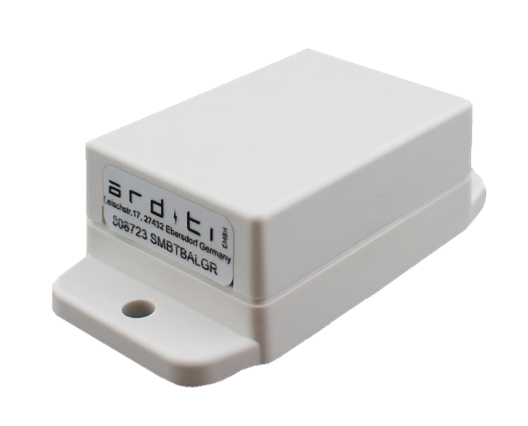

- lightgrey (808723)

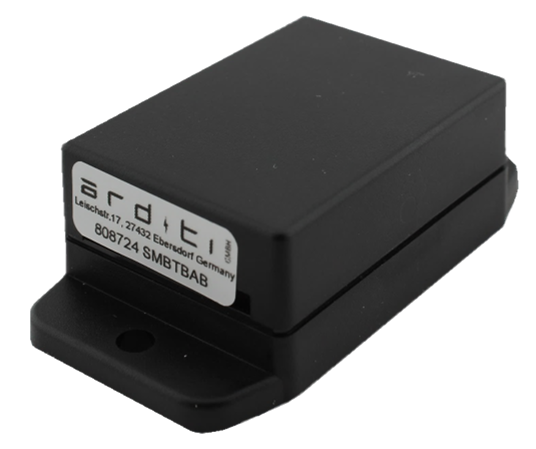

- black (8087234)
Specifications - 808723 - 808724
power input | 3 Vdc |
radio signal | 2,4..2,483 GHz; 4 dBm |
Max. range / outdoor | 30 m / 50 m |
battery | CR2032 |
ambient temperature | -20..+50 °C |
Degree of protection | IP 20 |

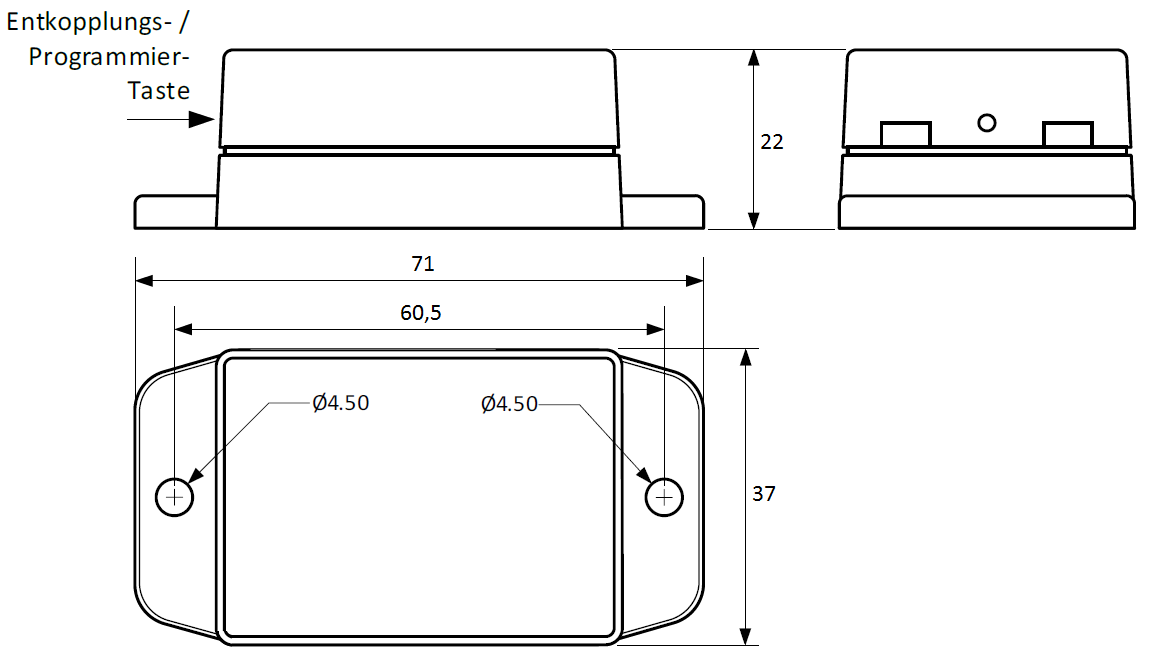

dimensions | 71 x 37 x 22 mm |
Advantages:
- •wireless installation
•battery powered
•Battery and magnet included
•Easy to use:
Changing the battery: Press in the long sides, lift off the cover (unscrewing not required)
For decoupling: Microswitch behind hole in housing with metal pin or similar
·Application/IP-Code: | IP20 - IP44 (Indoor) |
---|---|
·Dimmable/Control: | BT4.0 (2,4 GHz), Casambi radio |
