Accessories for TRACK ON busbar system from ALS

Electrical accessories for DALI track "TRACK ON" from ALS

In addition to the rails themselves, other components depending on the requirements and specifications are necessary for the successful use of the surface-mounted track. On our website you will find all components available via selection menus.
The overview below will help you find the right parts using the picture list.

Below the picture table you will find some application examples to help you configure your own.
Pictures and selection of electrical accessories for ALS TRACK ON tracks see here:

lanning example for the TRACK ON track:

Example 1: Requirement: 3m power track black, surface mounting, end feed
At least are needed:

• 3 Phase construction rail 1m --> SCH-102
• 3 Phase construction rail 2m --> SCH-202

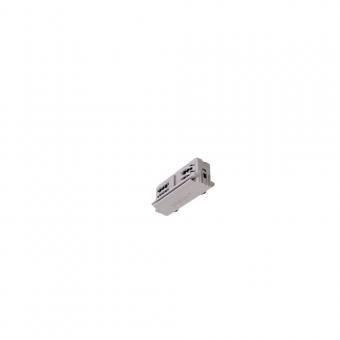

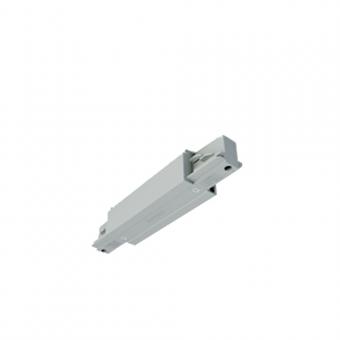

• Electrical straight connector --> SCH-112062

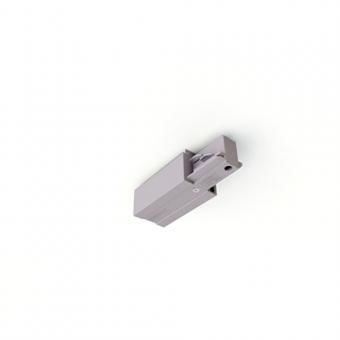

• End feeder --> SCH-112012 (depending on the orientation of the protective conductor)

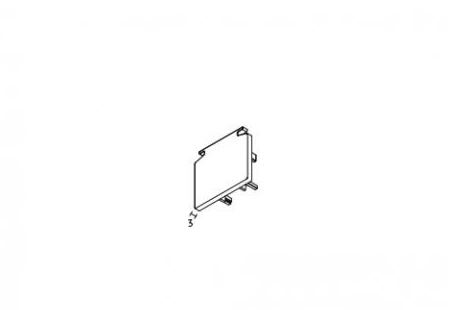

• End cap for the other side --> SCH-012172

Example2: Requirement: 2 x 90 ° arrangement of U-shaped busbar with the partial lengths 2m - 4m - 1m, white, feed in the middle of the 4m section, surface mounting

• 1x 3 Phase construction rail 1m --> SCH-101N
• 1x 3 Phase construction rail 2m --> SCH-201N
• 1x 3 Phase construction rail 4m --> SCH-401N

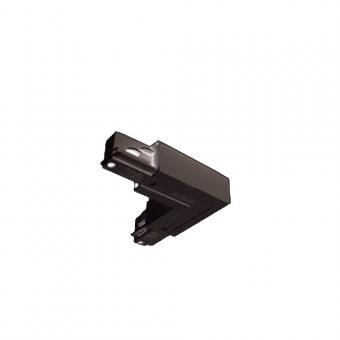

• 2x Corner connector protection Inside --> SCH-112101N

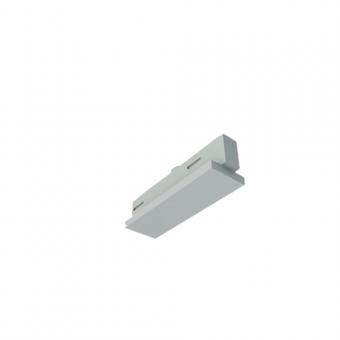

• 1x DALI center feeder --> SCH-152031N
• 2x End cap --> SCH-012171N
