DALI SI Sensor Interface
€50.25*
net-price: €42.23delivery time 2-4 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "DALI SI Sensor Interface"

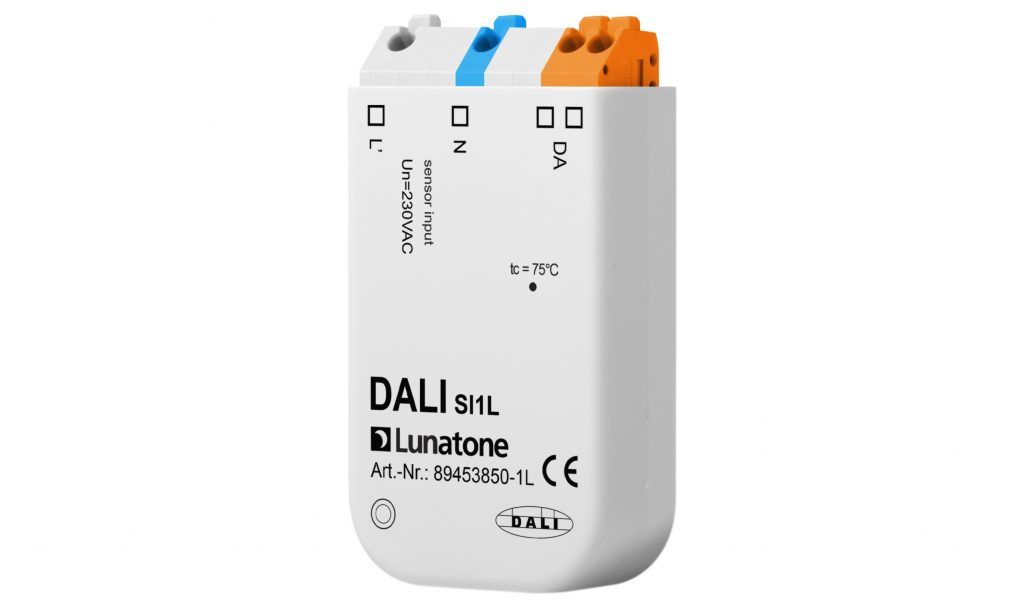

DALI SI Sensor Interface with switchin input

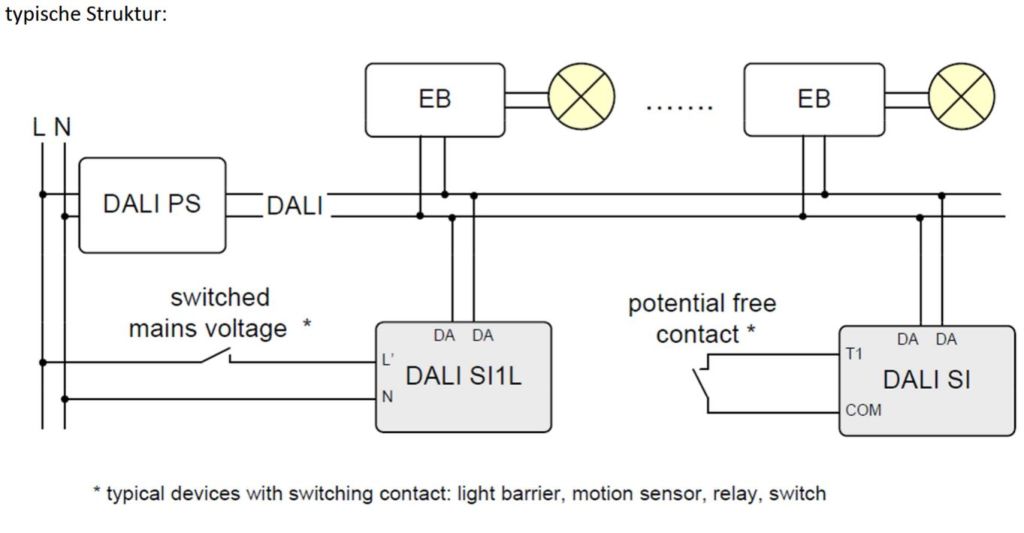

Sensor Interface to connect conventional motion sensors or pushbuttons to a DALI system. Configuration options are for example: range, target address, DALI commands for on/off, hold time, … . Multiple sensors within one group synchronise automatically. Two different versions are available: for potential free switching input (DALI SI) and switching input for mains (DALI SI1L). The device is designed to fit behind a light switch in a flush-type box.
Overview:
- Module with switching input
- Easy integration of occupancy and movement sensors, contact switches, photoelectric barrier sensors etc.
- Same behaviour as DALI CS
- types with input for potential free contact and input for mains voltage available
- Multiple trigger sources due to simple external interconnection
- Configurable schedule (light levels and hold times)
- Easy configuration with DALI-Cockpit software
- Multiple DALI SI and DALI CS modules can be installed on the same DALI-line and be used to control the same target range
- Device is supplied directly by the DALI-line
- The compact device is suitable for back box installation
| Type | DALI Sensor Interface | DALI SI 1L |
| Article number | 89453850 | 89453850-1L |
| Electrical data | ||
| Supply | via DALI Line | |
| typ. current consumption | 2.9mA | |
| Output | DALI | |
| Control input | 1 switching input for potential free contact | 1 switching input for mains |
| Galvanic isolation switching Input/DALI | no | yes |
| Technical data | ||
| Behaviour on input action | schedule, level and hold times configurable | |
| Connecting wire cross section | max 1.5 mm² | |
| Max. length of connecting wire | 50cm | 50m |
| Protection class | IP20 | |

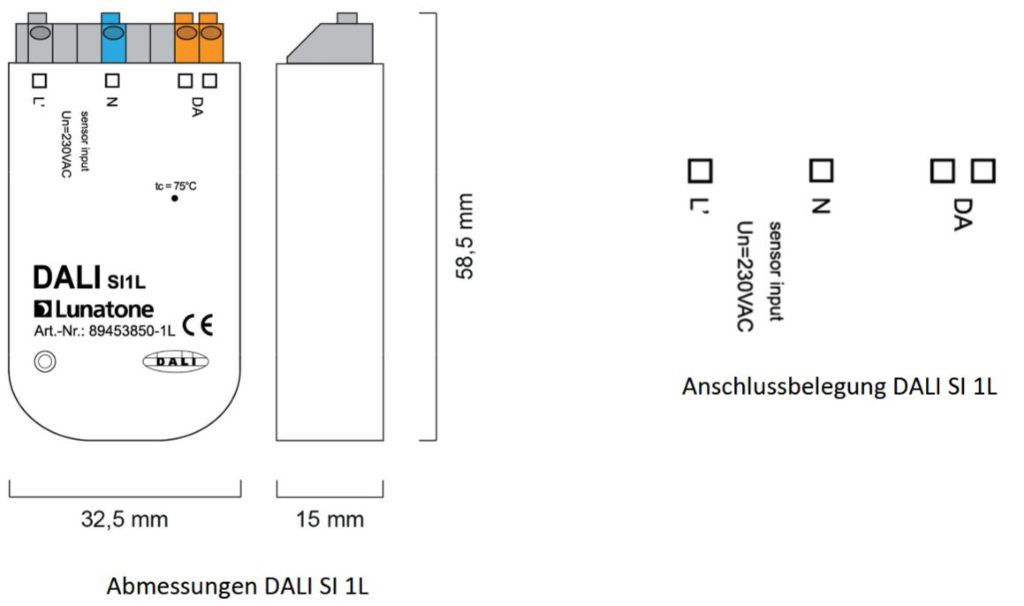

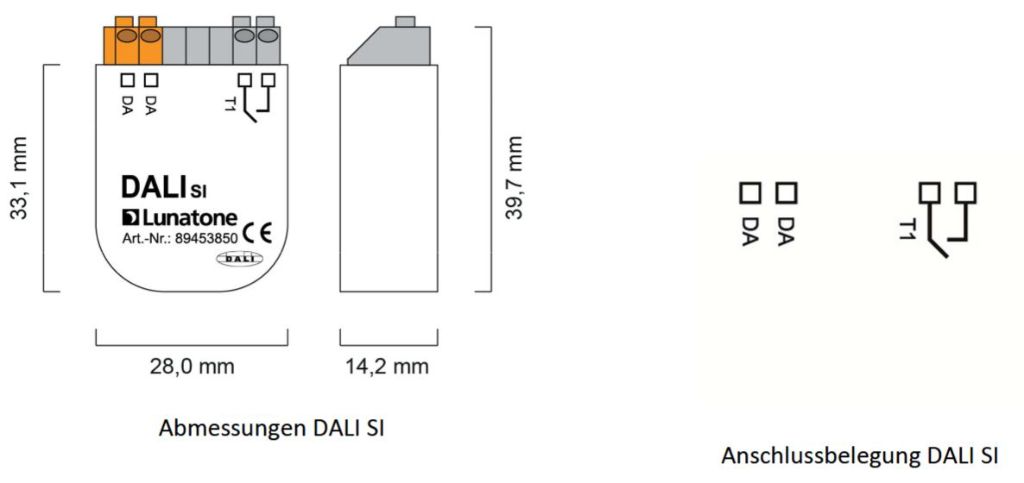

| Dimensions | 40mm x 28mm x 14mm | 59mm x 33mm x 15mm |
| Mounting | back box | |
For further information please refer to the data sheet in the Download tab
| ·Dimmable/Control: | DALI |
|---|
