700mA Driver for Illuxtron Pointer 9W
Original images, see data sheet or manufacturer’s website
Variant
Product number: 3636-05MH03MLMF00
Manufacturer: Illuxtron International BV
Manufacturer product number: 05MH03MLMF00
Weight: 0.11 kg
Min. order quantity: 1
Our benefits
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "700mA Driver for Illuxtron Pointer 9W"

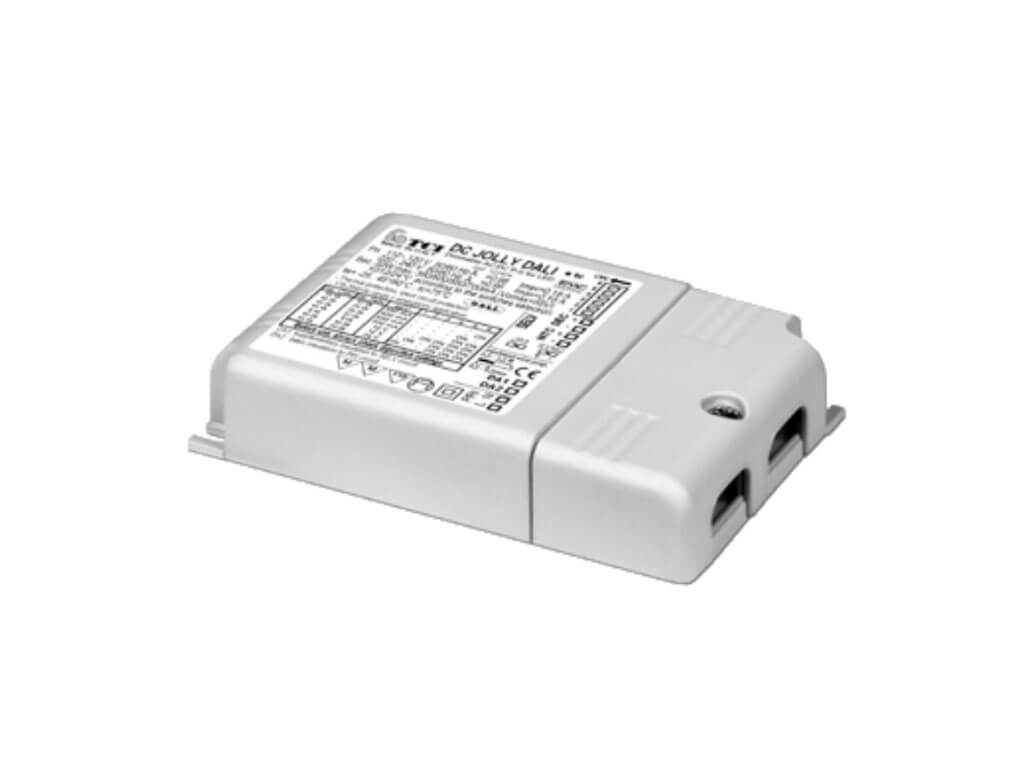

700mA constant current driver for Illuxtron Downlight Pointer 68 (fixed)
Illuxtron exclusively uses 700mA constant current drivers from renowned manufacturers. The service life of LED constant current drivers significantly determines the service life of a lighting system, as well as the flicker of LED luminaires.Illuxtron pays attention to the following properties with regard to the 500mA constant current sources:
- Conformity with health standards
- suitability for photo and video
- overvoltage protection
- Higher luminous efficacy thanks to ripple-free drivers
- Protection against overheating
- Adherence to EU standards
Dimmability and use of 700mA CC power supplies

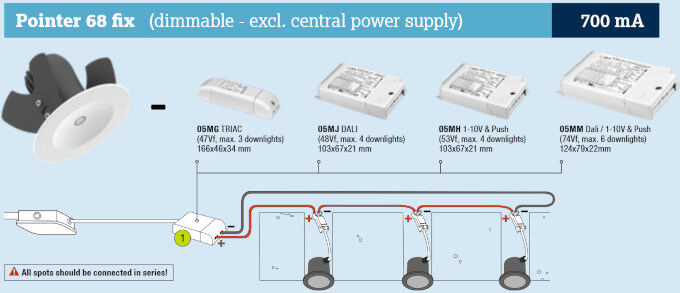

For operating the Illuxtron Pointer Downlights the manufacturer offers different 700mA LED drivers.The advantage of serial wiring lies in the best possible dimmability by means of constant current control and the associated high efficiency for best efficiency of the overall system.
The number of possible luminaires per power supply depends on the performance of the respective ballast. Here we offer different versions of different manufacturers and designs. The sum of all forward voltages of the LED spots is decisive. This must be smaller than the max. Vf (see table) of the LED driver.
Technical data of the constant current drivers for 700 mA:
| Description | PSU 32W 700mA Triac | PSU 32W 700mA Dali | PSU 32W 700mA 1-10V & Push | PSU 50W 700mA DALI / 1-10V & Push |
| Article number | 05MG03MLMF00 | 05MJ03MLMF00 | 05MH03MLMF00 | 05MM03MLMF00 |
| Watt | 32 W (47Vf) | 32 W (48Vf) | 32 W (53Vf) | 50 W (74Vf) |
| Current intensity | 700 mA | |||
| Efficiency | 85% | 87% | 90% | 89% |
| Pf | 0,97 | 0,98 | 0,95 | 0,95 |
| Ripple | < 3% | |||
| Input voltage | 220-240 V | |||
| Weight | 138 g | 138 g | 138 g | 218 g |
| Input current | 5A 50µS | 5A 50µS | 5A 50µS | 20A 400µS |
| B-16A Fuse | 50 pcs | |||
| Dimensions mm | 166x46x34 | 103x67x21 | 103x67x21 | 124x79x22 |
Application possibilities
The constant current drivers are also suitable for downlights of the Pointer 68 (fixed) product family.
Data sheets of the constant current drivers see Download Tabs:
Properties "700mA Driver for Illuxtron Pointer 9W"
| ·Dimmable/Control: | 1..10V, DALI, Phase-Cut (Triac), Push-Button |
|---|
Manufacturer "Illuxtron International BV"
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
