3W DALI LED Power Supply
€34.38*
net-price: €28.89delivery time 5-10 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "3W DALI LED Power Supply"
1-channel LED driver 3W DALI (DT6) with 220-240V AC
With an input voltage of 220-240V AC and constant current versions of 350mA, 500mA and 700mA, this LED driver is extremely versatile. A variant with 100 - 300 mA is also available on request. It is controlled via a DALI address (DT6), which enables precise control and integration into your lighting System.
A dimming range from 0.1% to 100% (CC) allows you to adjust the light intensity as required. Using the DALI Cockpit software, you can further configure the device, including the PWM frequency (122Hz/244Hz/488Hz/976Hz) to achieve optimum performance.

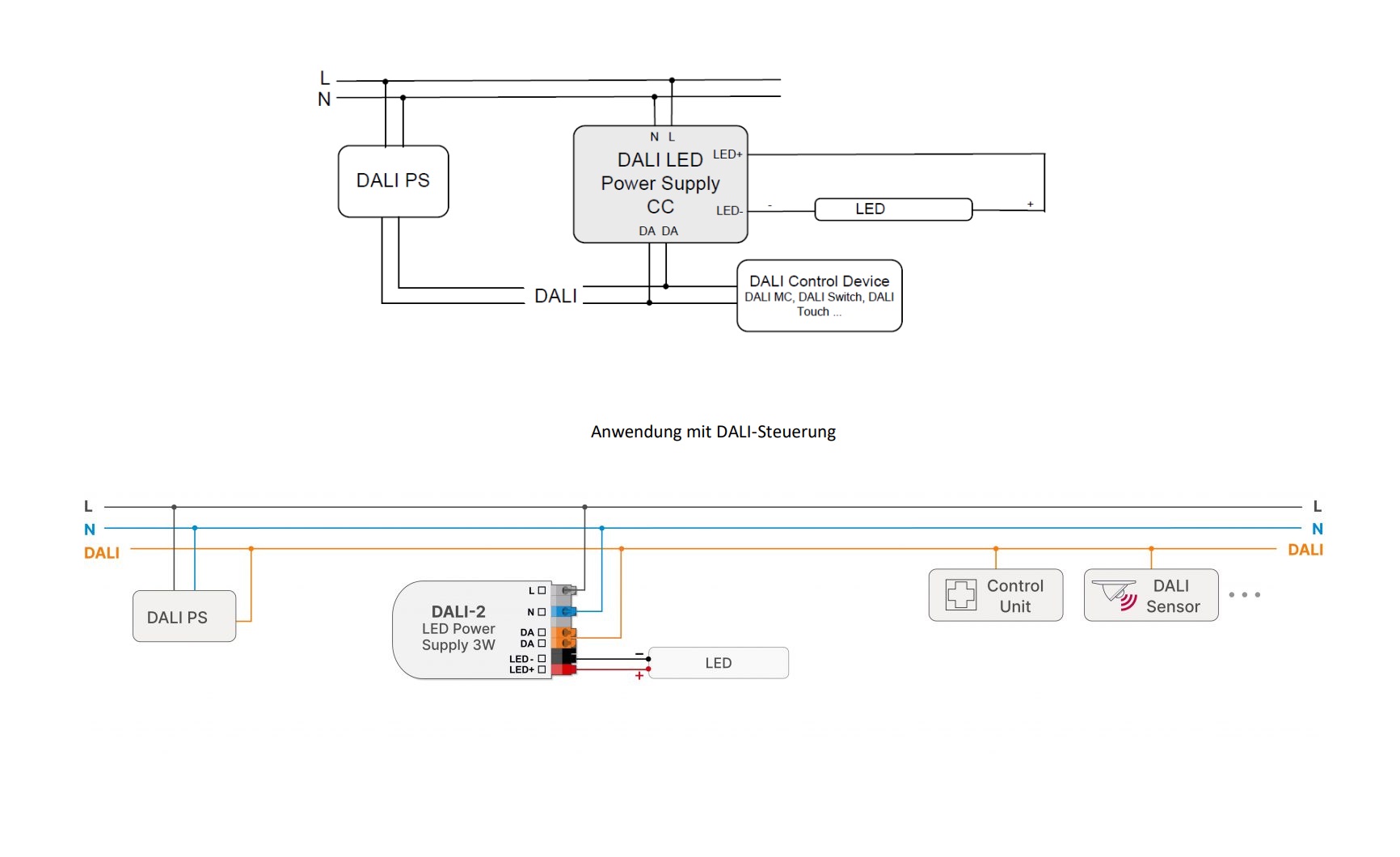

The 3 W DALI LED driver is perfect for recessed luminaire installation or installation in a flush-mounted box.
In addition, the DALI LED driver is characterised by low standby losses and high efficiency, and with the integrated overtemperature cut-out and short-circuit protection (CC), you can rest assured that your lighting system is always safe and reliable.
The 3 W DALI LED driver is supplied in a user-friendly delivery state and can be easily configured via the DALI Cockpit software tool and a DALI USB interface.
Specification 1-channel LED driver 3W DALI
| TypE | DALI LED Power Supply CC DT6 | ||||
| Article number | 89453762-350 | 89453762-350 | 89453762-350 | ||
| Electrical data: | |||||
| Output current | 350mA | 500mA | 700mA | ||
| Output voltage rang | max 9V | max 6,5V | max 3,5V | ||
| Supply | 220-240V AC / 50-60Hz, Iline=0.02A, power factor > 0.95, inrush current < 0.1A | ||||
| Galvanic isolation | SELV | ||||
| control Input | DALI | ||||
| DALI current requirement | 2mA | ||||
| Number of DALI addresses | 1 | ||||
| Technical data: | |
| Status after mains return adjustable via DALI: | 0%-100% or last value |
| Ambient temperature | -20°C ... +45°C |
| Expected service life (at Tc<=65°C) | >50.000h |
| Protection class | IP20 |
| Max. Max. cable cross-section | 1.5 mm2 |

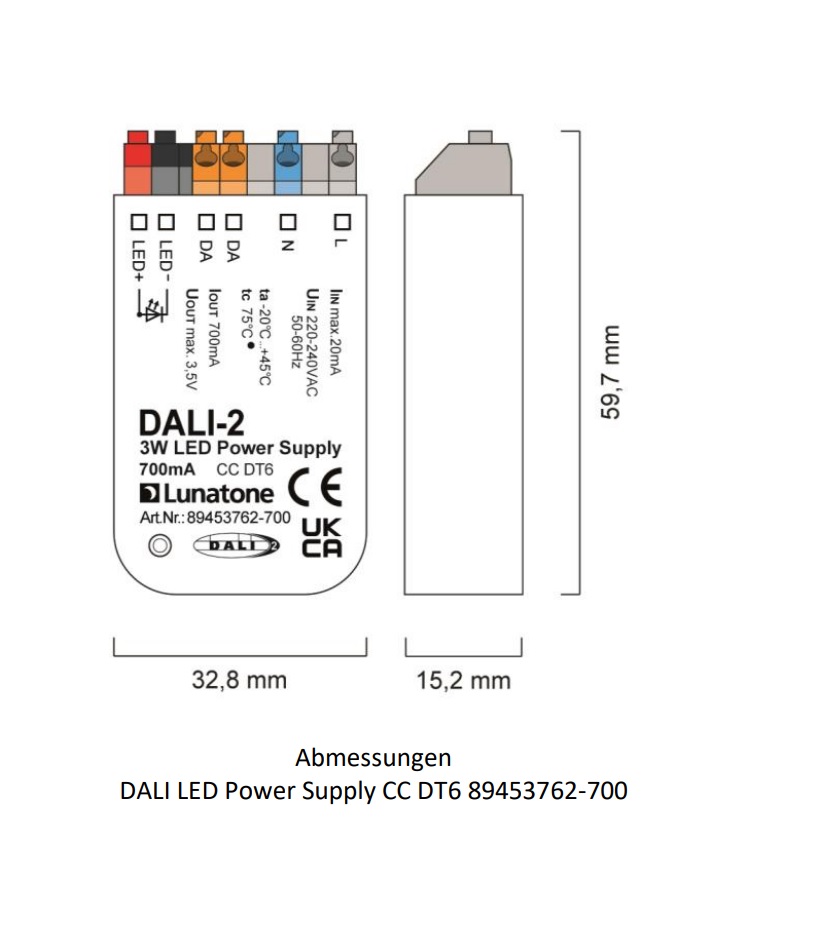

| Dimensions (LxWxH) | 59mmx33mmx15mm |
| Mounting/housing form | Recessed box / luminaire Installation |
For further information on this product, please refer to the data sheet.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Constant Current: | 0,35A, 0,5A, 0,7A |
| ·Dimmable/Control: | DALI, PWM |
| ·Power range: | 1 - 5 W |
