350mA Constant Current Sources for Illuxtron Mini DL Series
Product number: 2996-05CJ03MLMD00
Manufacturer: Illuxtron International BV
Manufacturer product number: 05CJ03MLMD00
Weight: 0.13 kg
Min. order quantity: 1
Our benefits
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "350mA Constant Current Sources for Illuxtron Mini DL Series"
350mA constant current driver for Illuxtron Mini Downlights Fluxe 35/50, Fabio 35, Omega 35/50, Linea 68
Illuxtron exclusively uses 350mA constant current drivers from renowned manufacturers. The service life of LED constant current drivers significantly determines the service life of a lighting system, as well as the flicker of LED luminaires.Illuxtron pays attention to the following properties with regard to the 350mA constant current sources:
- Conformity with health standards
- suitability for photo and video
- overvoltage protection
- Higher luminous efficacy thanks to ripple-free drivers
- Protection against overheating
- Adherence to EU standards
Dimmability and use of 350mA CC power supplies

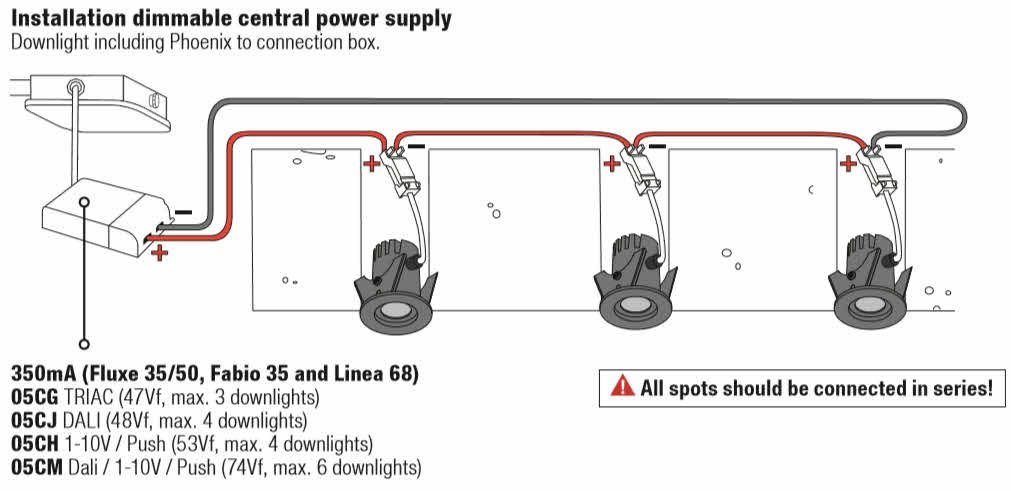

To operate the Illuxtron Mini Downlights, the manufacturer offers various 350mA LED drivers.The advantage of serial wiring lies in the best possible dimmability by means of constant current control and the associated high efficiency for best efficiency of the overall system.
The number of possible luminaires per power supply depends on the performance of the respective ballast. Here we offer different versions of different manufacturers and designs. The sum of all forward voltages of the LED spots is decisive. This must be smaller than the max. Vf (see table) of the LED driver.

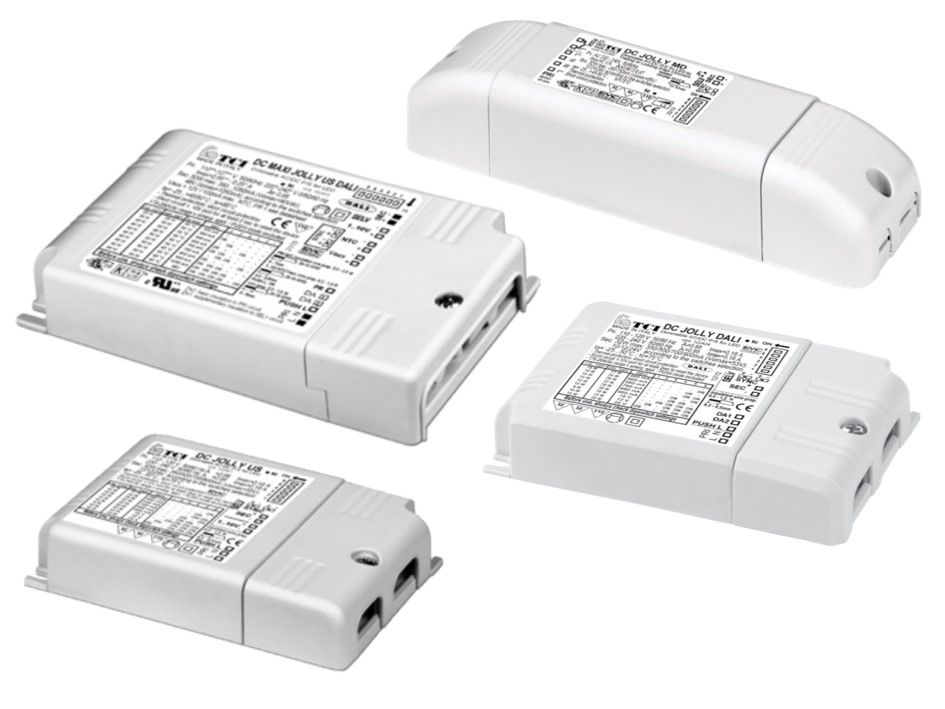

Technical data of the constant current drivers for 350 mA:

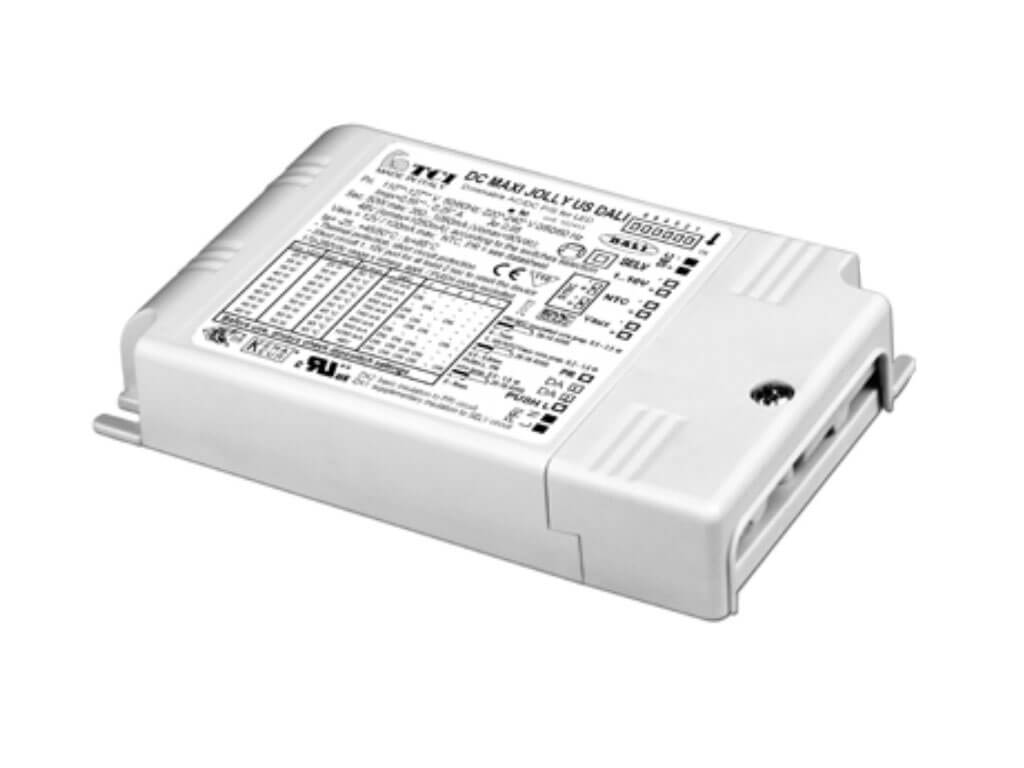

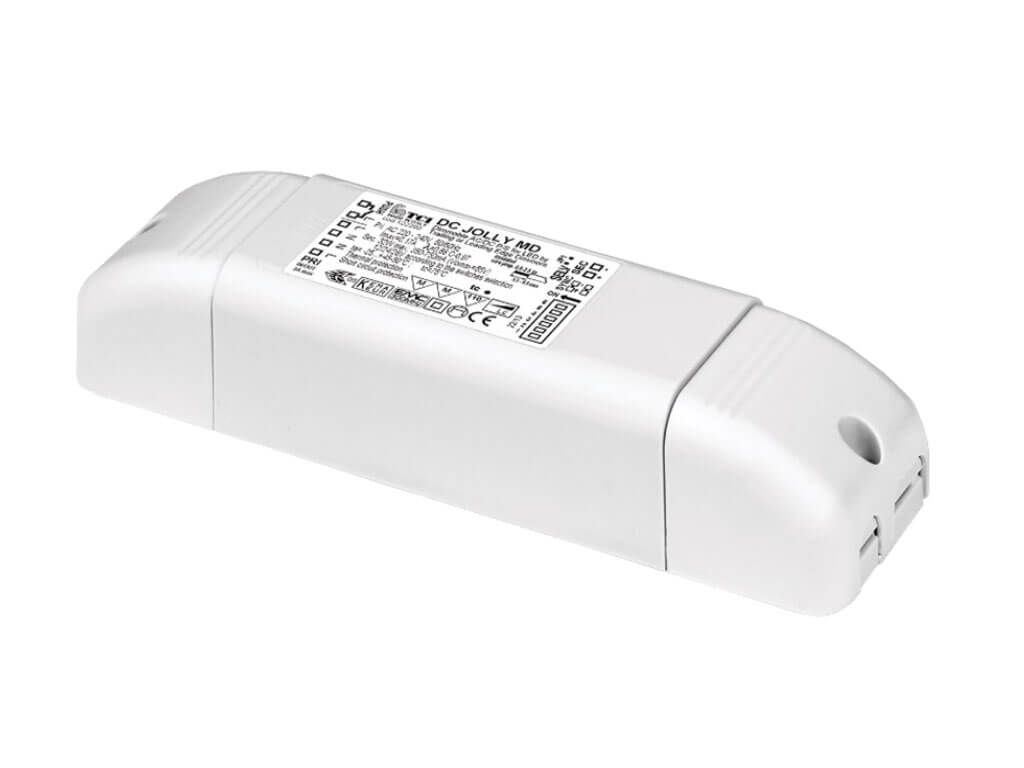

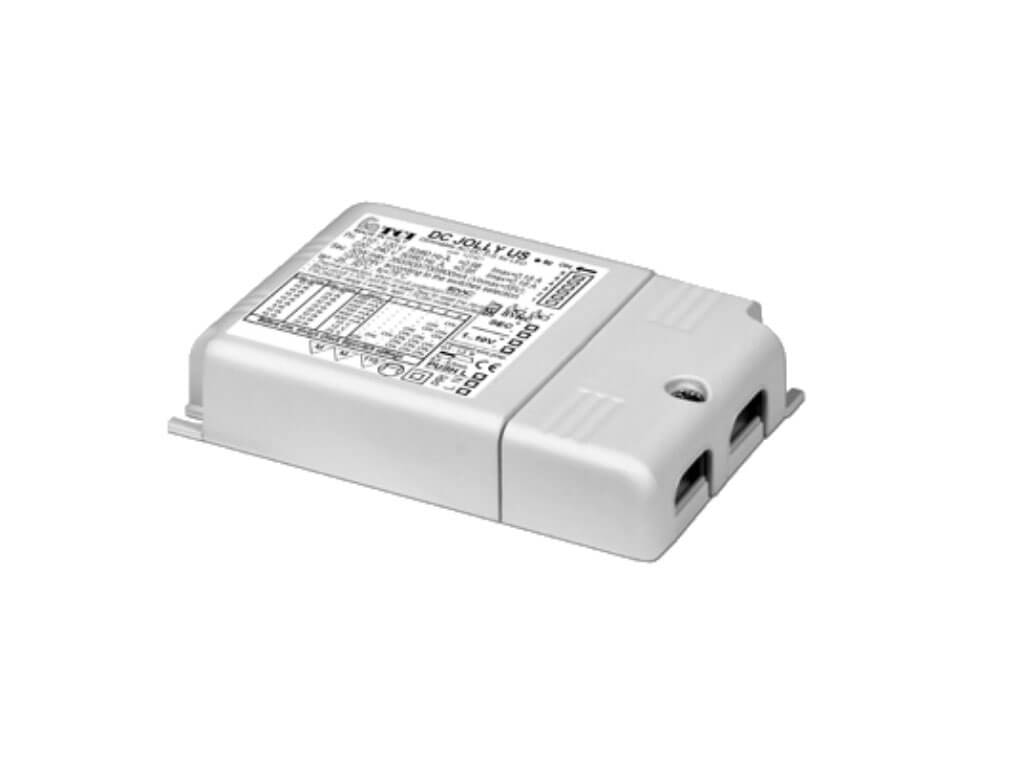

| Description | PSU 32W 350mA Triac | PSU 32W 350mA Dali | PSU 32W 350mA 1-10V & Push | PSU 50W 350mA DALI / 1-10V & Push |
| Article number | 05CG03MLMD00 | 05CJ03MLMD00 | 05CH03MLMD00 | 05CM03MLMD00 |
| Watt | 32 W (47Vf) | 32 W (48Vf) | 32 W (53Vf) | 50 W (74Vf) |
| Current intensity | 350 mA | |||
| Efficiency | 85% | 87% | 90% | 89% |
| Pf | 0,97 | 0,98 | 0,95 | 0,95 |
| Ripple | < 3% | |||
| Input voltage | 220-240 V | |||
| Weight | 185 g | 138 g | 138 g | 218 g |
| Input current | 5A 50µS | 5A 50µS | 5A 50µS | 20A 400µS |
| B-16A Fuse | 50 pcs | 50 pcs | 50 pcs | 15 pcs |
| Dimensions mm | 166x46x34 | 103x67x21 | 103x67x21 | 124x79x22 |
Application possibilities

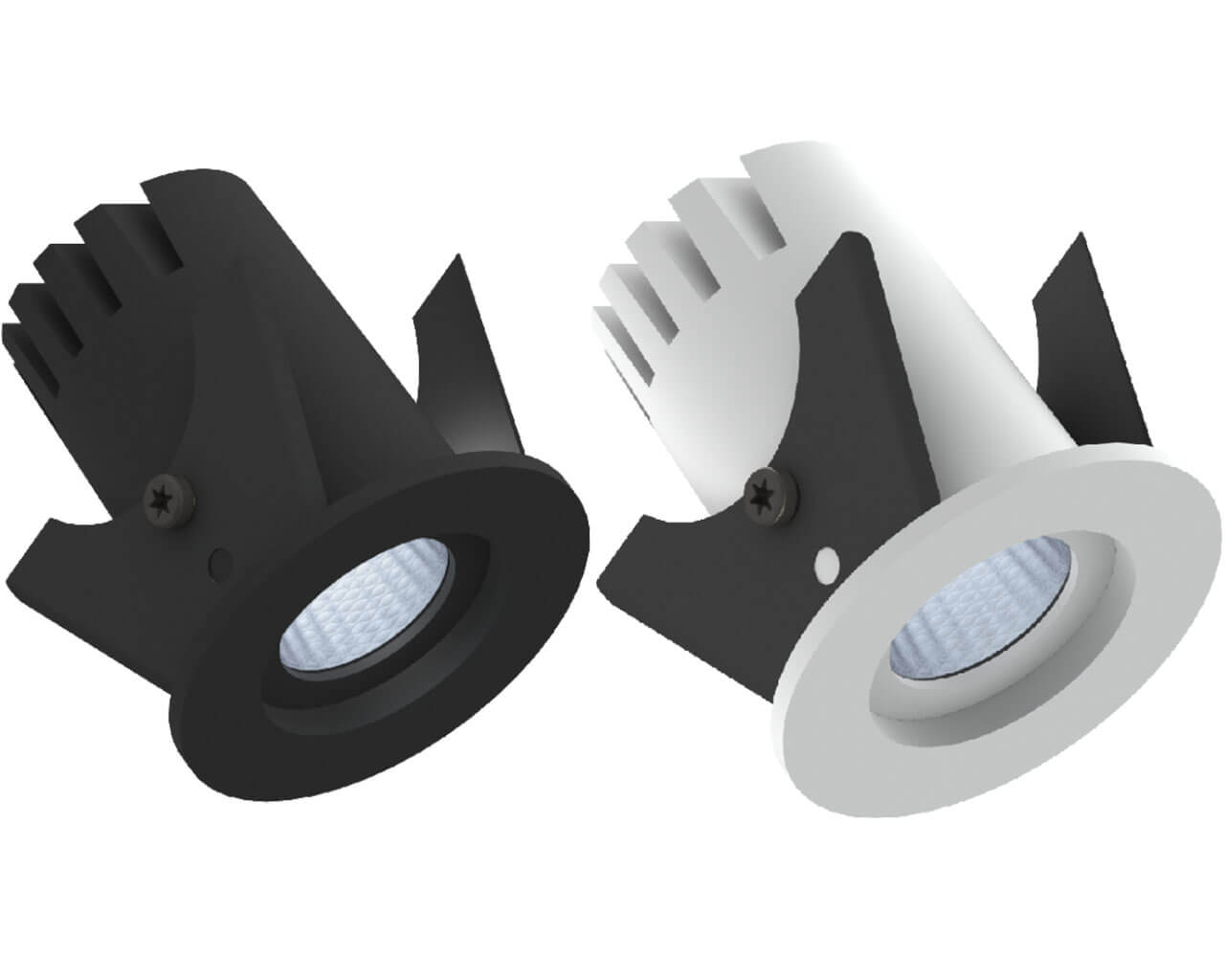

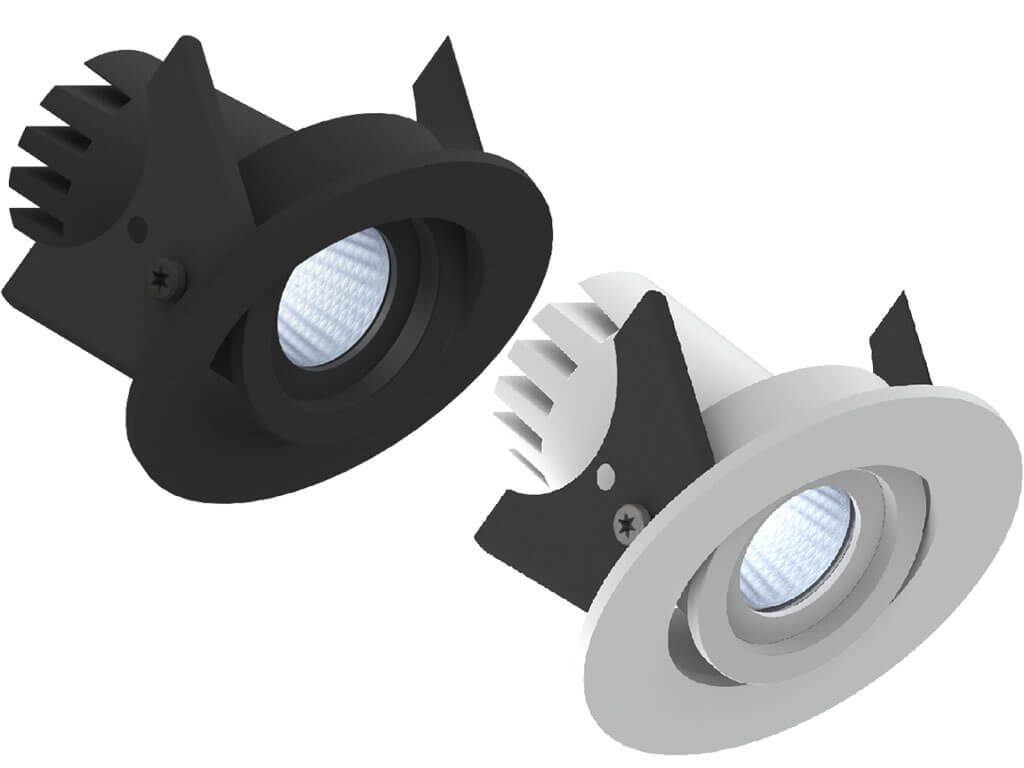

The constant current drivers are suitable for Fluxe 35, Fluxe 50, Fabio 35, Omega 35, Omega 50 and Linea 68. Data sheets of the constant current drivers see Download Tabs:
Properties "350mA Constant Current Sources for Illuxtron Mini DL Series"
| ·Dimmable/Control: | 1..10V, DALI, Phase-Cut (Triac), Push-Button |
|---|
Manufacturer "Illuxtron International BV"
The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.
