24V Power Supplies for Illuxtron Mini Downlight Series

Variant

Sold out

€34.51*

net-price: €29.00

Prices incl. VAT plus shipping costs

Currently not available.

Product number: 2998-05BW03MLMC00

Manufacturer: Illuxtron International BV

Manufacturer product number: 05BW03MLMC00

Weight: 0.11 kg

Min. order quantity: 1

Our benefits

Purchase and advice from the LED expert
Professional products from over 15 years of experience
LED technology is our passion
Free shipping for orders over €150 (DE)

Product information "24V Power Supplies for Illuxtron Mini Downlight Series"

24V power supply for Illuxtron Mini Downlights Fluxe 35/50, Fabio 35, Omega 35/50, Linea 68

Illuxtron exclusively uses 24V power supplies from renowned manufacturers. The service life of power supply units significantly determines the service life of a lighting system, as well as the flicker of LED lights.

The following features are important for the 24V power supplies at Illuxtron:

Conformity with health standards
suitability for photo and video
overvoltage protection
Higher luminous efficacy thanks to ripple-free drivers
Protection against overheating
Adherence to EU standards

Other details for Illuxtron LED Power Supplies

Dimmability and use of 24V power supplies

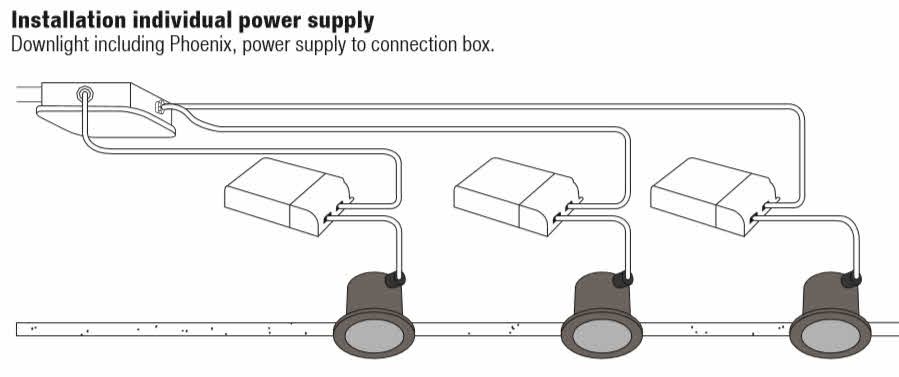

For the operation of the Illuxtron Mini Downlights, the manufacturer offers various pre-assembled 24V power supplies. (Plug&Play)

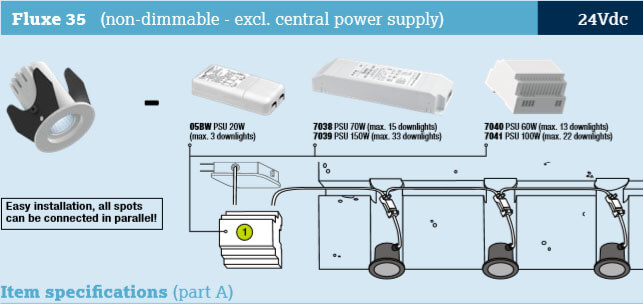

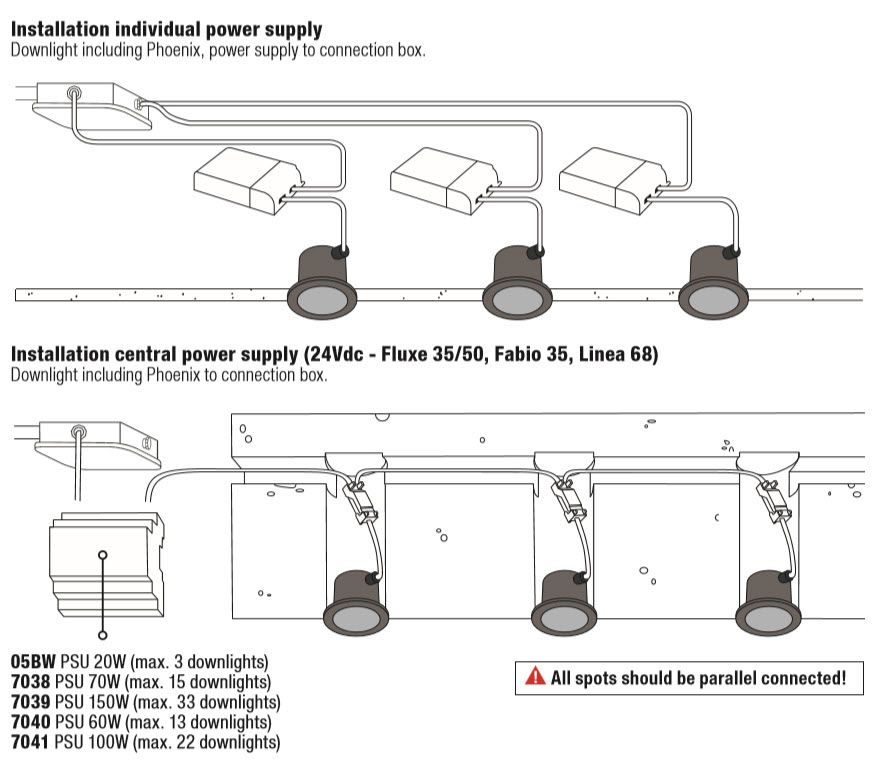

The advantage of 24V wiring lies in its simplicity and safety. Parallel wiring is as simple as the well-known 12V wiring of low voltage lamps and can even be used. This arrangement is not dimmable.

The number of possible luminaires per power supply unit depends on the performance of the respective power supply unit. Here we offer different versions of different manufacturers and designs.

24V power supplies for Illuxtron mini downlight series

24V power supplies for Illuxtron mini downlight series

Technical data of the 24V power supplies:

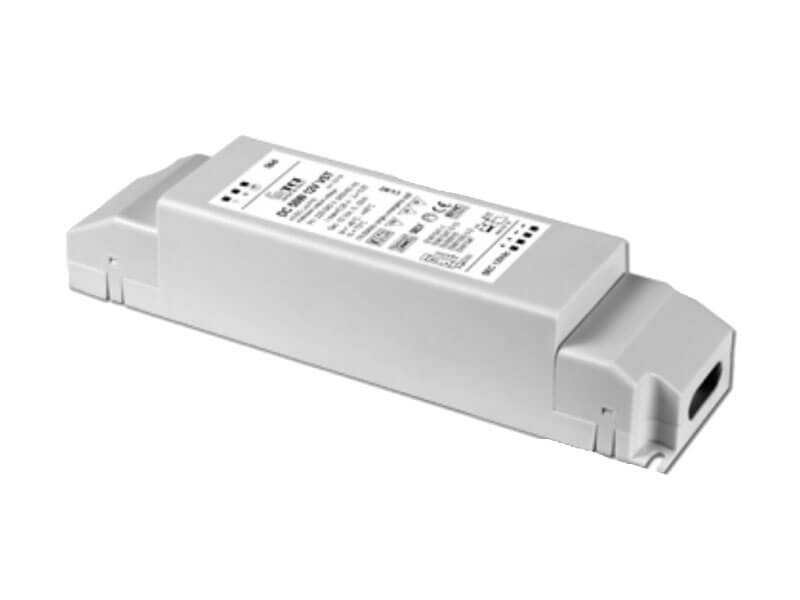

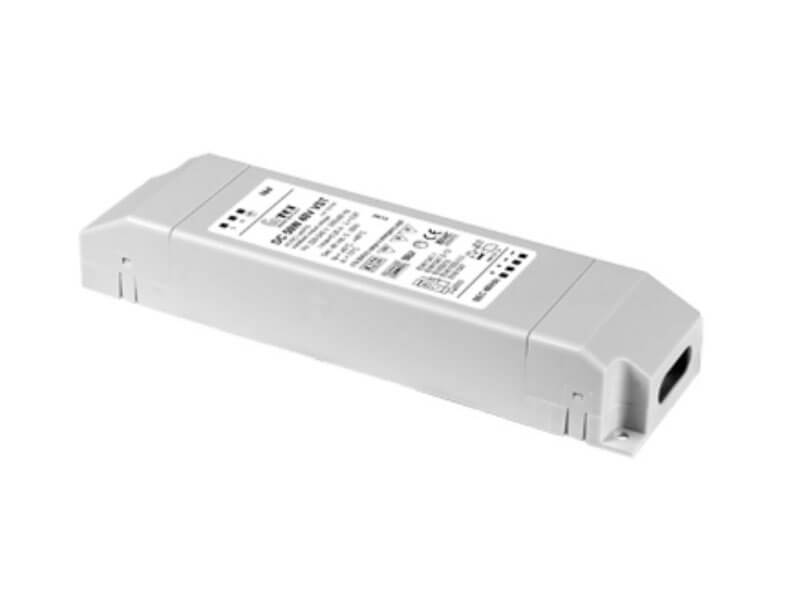

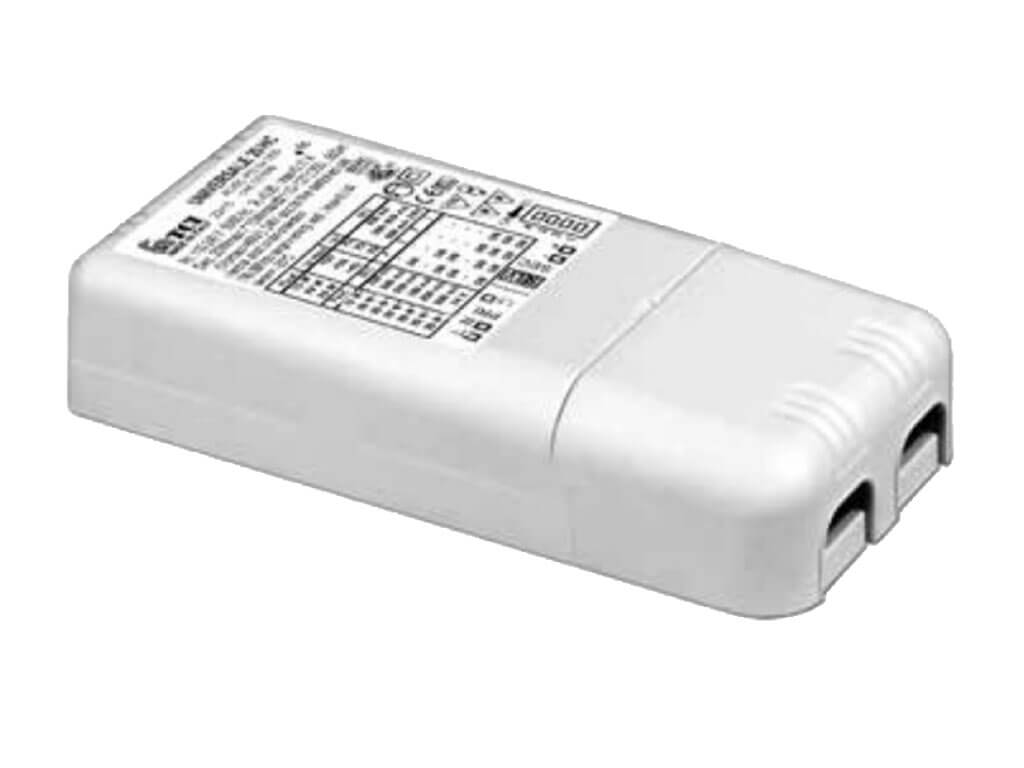

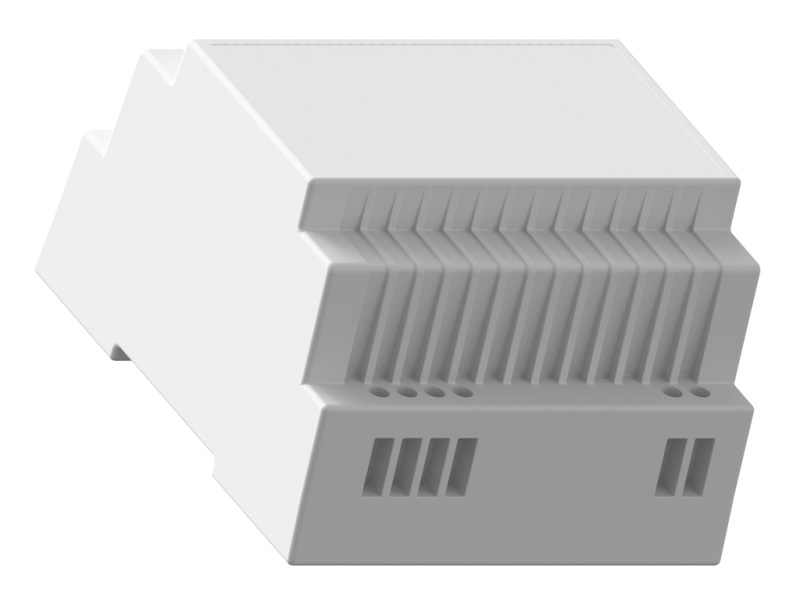

Description	PSU TCI 122198 20,0W 24Vdc no-dim	PSU TCI 220-240/24V 70W	PSU TCI 220-240/24V 150W	PSU Meanwell DR60 24V	PSU Meanwell DR100 24V
Article number	05BW03MLMC00	703805000002	703905000002	704005000002	704105000002
Input voltage	220-240 V
Watt	20 W	70 W	150 W	60 W	100 W
Efficiency	87%	91%	94%	84%	89%
Pf	0,93	0,97	0,98	0,92	0,92
Ripple	< 3%
Dimension (mm)	111 x 52 x 22	225 x 60 x 36	240 x 60 x 49	93 x 78 x 56	100 x 93 x 56
Weight	108 g	448 g	582 g	296 g	342 g
Input current	5A 50µS	15A 600µS	35A 1000µS	35A	40A
B-16A Fuse	50 pcs	15 pcs	8 pcs

Application possibilities

These 24V LED power supplies are suitable for the Fluxe 35, Fluxe 50, Fabio 35, Omega 35, Omega 50 and Linea 68.among others.
Data sheets of the constant current drivers see Download Tabs:

Datasheet & further Infos about this product

Instructions for Mini DL Suitable for Illuxtron Fluxe 35, Fluxe 50, Fabio 35, Omega 35, Omega 50, Linea 68
Data sheet constant voltage source Data sheet for constant voltage source 24V DC for Illuxtron Fluxe series Art.No. 703805000002, 703905000002, 704005000002, 704105000002 Data for 05BW03MLMC00 not yet available.
