24V LED strip 10m warm white 4W/m 60LEDs/m IP54
€184.35*
net-price: €154.92- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Flexible 1-CHIP 24 Vdc LED strip 10m | for outdoor use with silicone Coating
This 10m LED strip with 1-CHIP technology with warm white 3,000 K is suitable for outdoor applications thanks to its IP 54 rating and is ideal for ambient lighting. This flexible LED strip can also be used to highlight shelves or terrariums, for example, or to emphasize individual steps or edges in the garden through targeted installation.
For sustainable operation, please note the information on cooling the LED strips in the data sheet. Cooling can be achieved via ALU profiles, for example.
Features of the LED strip 10m IP 54
- The supply voltage of 24V enables a large selection of power supply units
- The beam angle of 120° ensures wide-area illumination
- The component density of 60 LEDs/m ensures optimum light Distribution
- With a pitch of 100 mm, you can customise the LED strip to suit your Needs
- Warm white light colour with 3,000 K and 290 lm/m
- Dimmable via PWM (see data sheet)
Application examples:
- Effect lighting of cabinets, terrariums and shelves
- Highlighting individual pieces of furniture through targeted lighting
- Lighting in the lorry sector, e.g. for motorhomes
- Illuminating steps
- Atmospheric lighting in party cellars
- Setting accents in the garden
- Many other outdoor applications possible.
Technical data of the 10m LED strip
Electrical data | |
Rated voltage | 24 Vdc |
Rated current: | 0,17 A/m |
Nominal power: | 4 W/m |
Efficiency: | 72,5 lm/W |
Energy efficiency class: | G |
Photometric data | |
Luminous flux: | 290 lm/m |
Light colour: | warmweiß |
Colour temperature: | 3.000 K |
Colour rendering index RA: | 85 |
Beam angle: | 120 ° |
Dimmable: | yes, via PWM (see data sheet) |
Service life & ignition time | |
Nominal service life: | 30.000 h |
Ignition time: | < 0,5 s |
Start-up time: | immediate |
Temperatures | |
Operating temperature: | 55 °C measured at the TC Point |
Storage temperature | -15 to +40 °C |

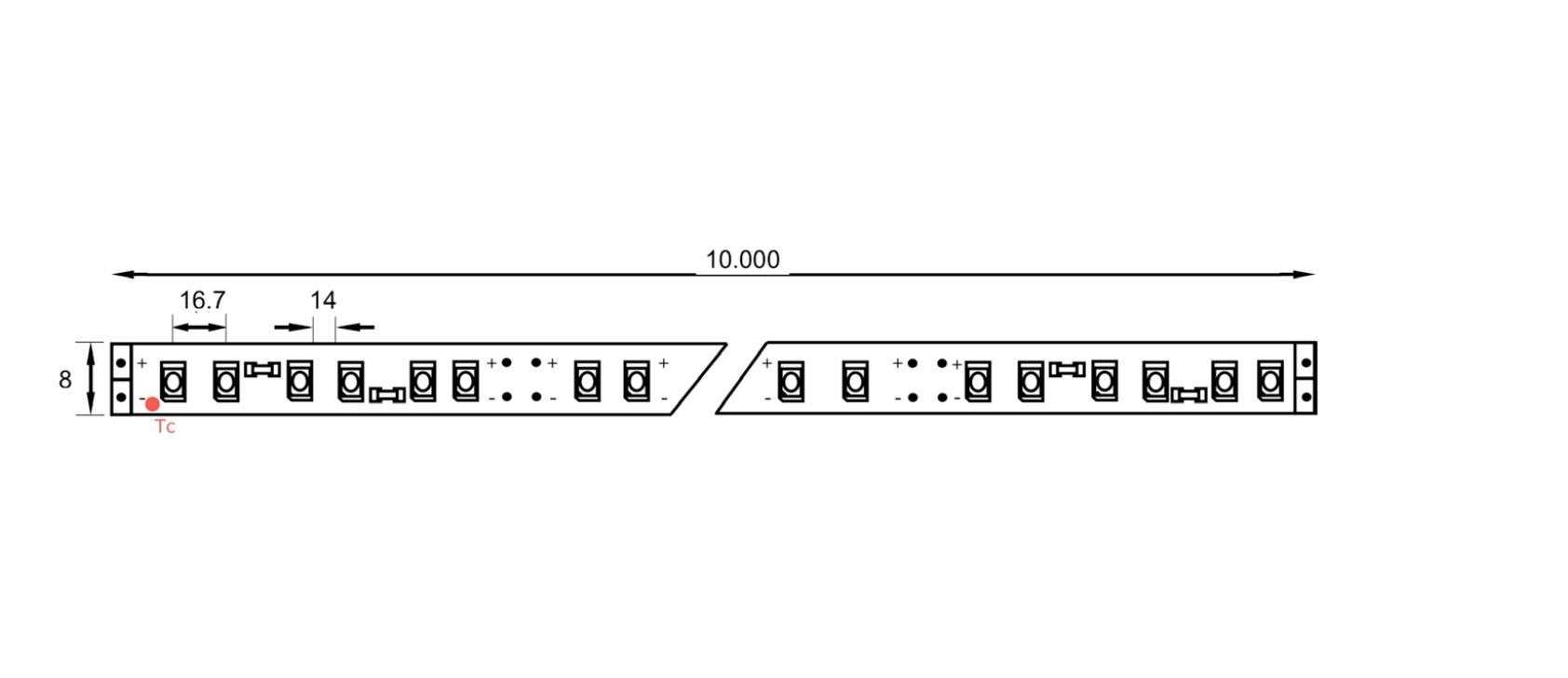

Dimensions | |
Lenght: | 10.000 mm |
Width: | 8 mm |
Hight: | 4 mm |
Pitch: | 100 mm |
LED Spacing: | approx. 16,7 mm |
LED gap: | approx. 14 mm |
For further technical details and safety instructions, please refer to the data sheet!
·Application/IP-Code: | IP5x, IP65/67 (Outdoor) |
---|---|
·Color Temperature/Color: | 3000K |
·Power/Meter: | < 10W/m |
·rated luminous flux lm/m: | less than 500 lm/m |
·Amount LEDs/m: | 60 LEDs/m |
·Constant Voltage: | 24V |
