1Ch 0-10V LED PWM Dimmer / Booster
€67.01*
net-price: €56.31Just 1 pieces available
Available, delivery time: 1-3 days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "1Ch 0-10V LED PWM Dimmer / Booster"

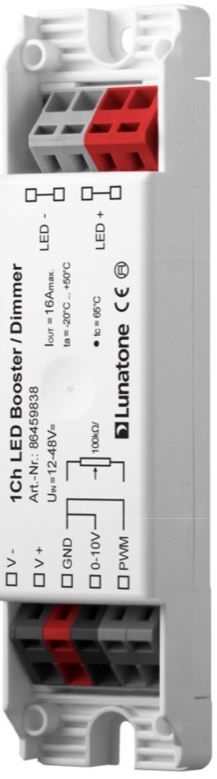

1Ch 0-10V LED PWM Dimmer / Booster Control Gear
ED driver (CV) with one channel, can be operated as PWM Booster or Dimmer.The device operates as PWM-Booster, if PWM-signals are applied to the input (50Hz-1kHz)
If operated with 100kO potentiometer or 0-10V control devices (active and passive), the device functions as Dimmer.
Overview:
- 1 channel LED dimmer
- Suitable for constant voltage LED-modules
- Control signals: PWM (50Hz-1kHz), 100kOhm potentiometer, 0-10V voltage signal (active and passiv)
- Logarithmic dimming curve
- Analog input: connection of a 100kOhm potentiometer or a 0-10V control device (active or passive), the 0-10V input signal is transformed in a corresponding PWM output signal
- PWM control signal: suitable for operation with a LED-dimmer with common plus connector
- Supply voltage of 12V to 48V DC
- Maximum current: 16A
- Suitable for remote ceiling
| Electrical data | |
| Supplx | 12VDC-48VDC |
| Maximum input current | 16A |
| Control input | PWM (50Hz-1kHz) 100kOhm potentiometer 0-10V active/passive |
| Technical data | |
| Expected lifetime (at Tc<=75°C) | >50000h |
| Max. connecting wire crosssection | 2.5 mm² |
| Protection class | IP20 |
| Mounting | Deckeneinwurf |
| Dimenions (LxWxH) | 120mm x 30mm x 22mm |
RECOMMENDATION: Care should be taken on keeping cable lengths between DC power supply and dimmer as well as between dimmer and luminaires (Led-Strings) as short as possible. This kind of installation will minimize the influence of voltage drops.
For further information please refer to the data sheet in the Download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Dimmable/Control: | 1..10V, PWM |
